76 mm 316 Stainless Steel Boat Deck Drain

Flush Mount

Regular price€7,95

Order preview

1 unit at €7,95 EUR each €7,95 EUR

Merchandise subtotal 0.5 kg estimated packaged weight

Delivery options

1 unit / 0.5 kg packaged

Final rate confirmed at checkout.

Secure checkout Shipping and taxes confirmed before payment.
  • American Express
  • Apple Pay
  • Bancontact
  • Google Pay
  • Mastercard
  • MB WAY
  • PayPal
  • Shop Pay

Product information

Product overview

Check dimensionsReview the selected option and product drawings.
Confirm compatibilityMatch materials, connections and installation clearance.
Plan the orderCombine compatible items before checking delivery.

76 mm 316 Stainless Steel Tubeless Boat Deck Drain

The 76 mm 316 stainless steel boat deck drain from AirowMarine is a low-profile, flush-mount marine drainage fitting designed for suitable boat and yacht deck drainage applications. Made from mirror-polished AISI 316 stainless steel, this tubeless deck drain features an open slotted strainer that helps keep larger debris away from the drain opening.

With a nominal 76 mm size and an approximate 75.6 mm flange diameter, this stainless steel marine deck drain is intended for installations where a compact, low-profile drainage fitting is required. Before ordering, compare the flange diameter, drain opening, overall depth and mounting requirements with your existing deck or planned installation.

Key Features of the Stainless Steel Boat Deck Drain

  • AISI 316 stainless steel: Marine-grade stainless steel construction with a mirror-polished finish.
  • 76 mm nominal size: A compact boat deck drain with an approximate 75.6 mm flange diameter.
  • Flush-mount design: A low-profile deck drain designed to sit close to the mounting surface when correctly installed.

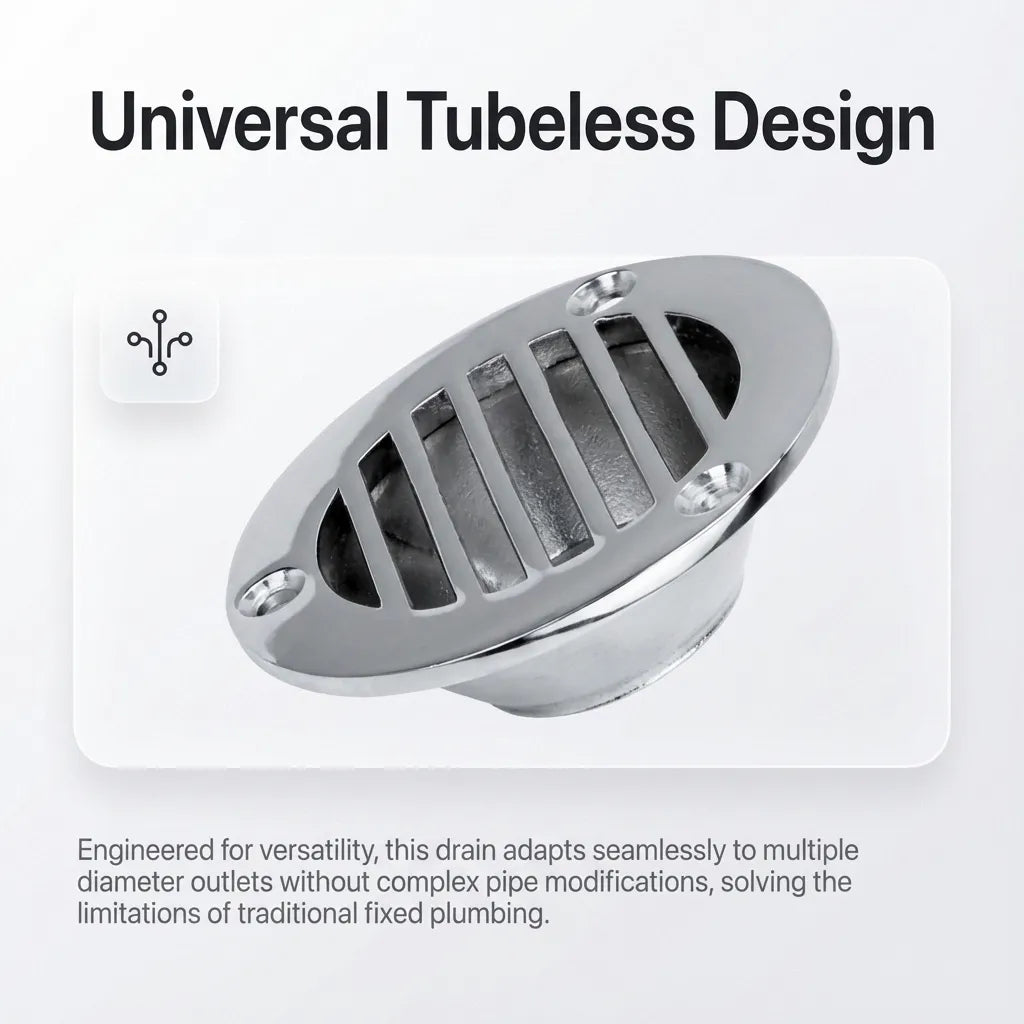

  • Tubeless construction: A tubeless marine drain design; verify the discharge path and installation arrangement for your specific application.

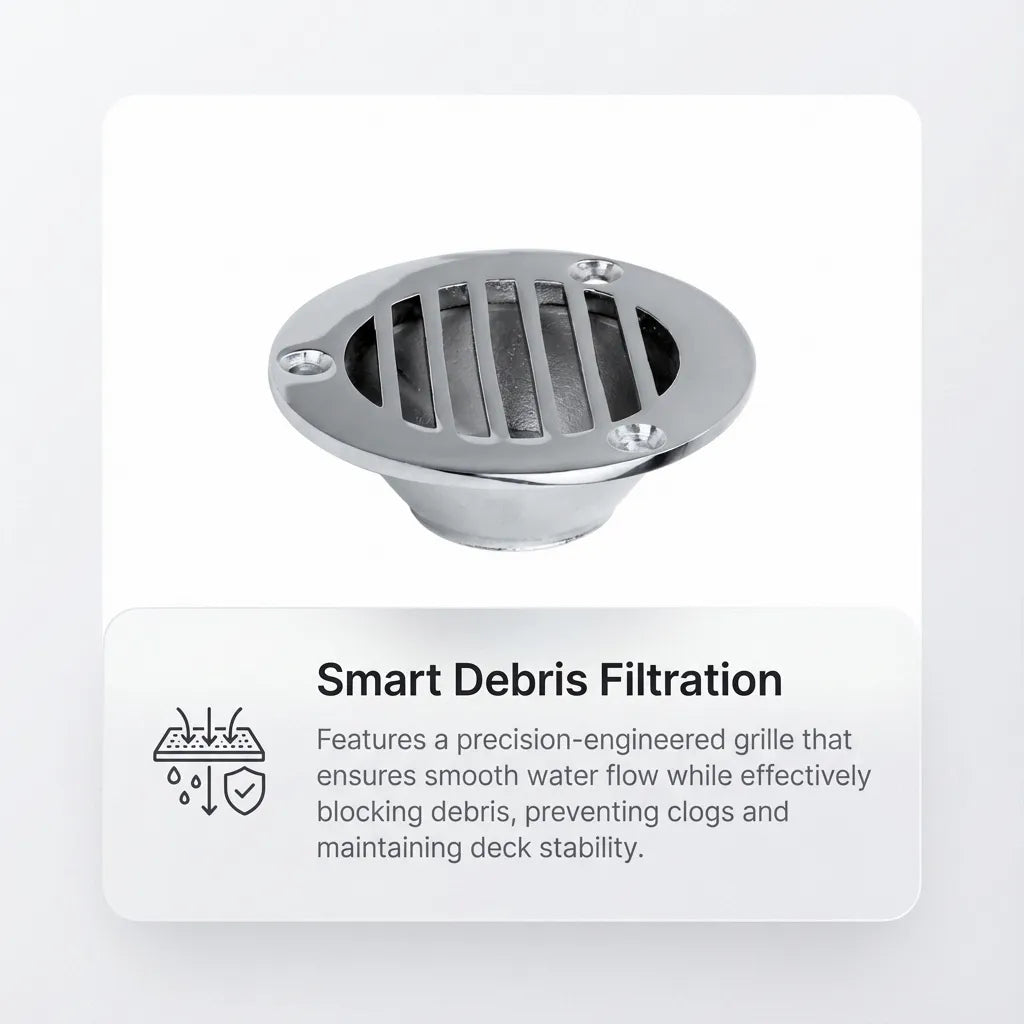

  • Open slotted strainer: Helps keep larger debris from entering the drain opening while allowing water to pass through.
  • Marine drainage applications: Intended for suitable boat and yacht deck drainage installations.

Product Specifications

Product Type Boat deck drain / marine drainage fitting
Nominal Size 76 mm
Material AISI 316 stainless steel
Finish Mirror polished
Design Tubeless, flush-mount deck drain

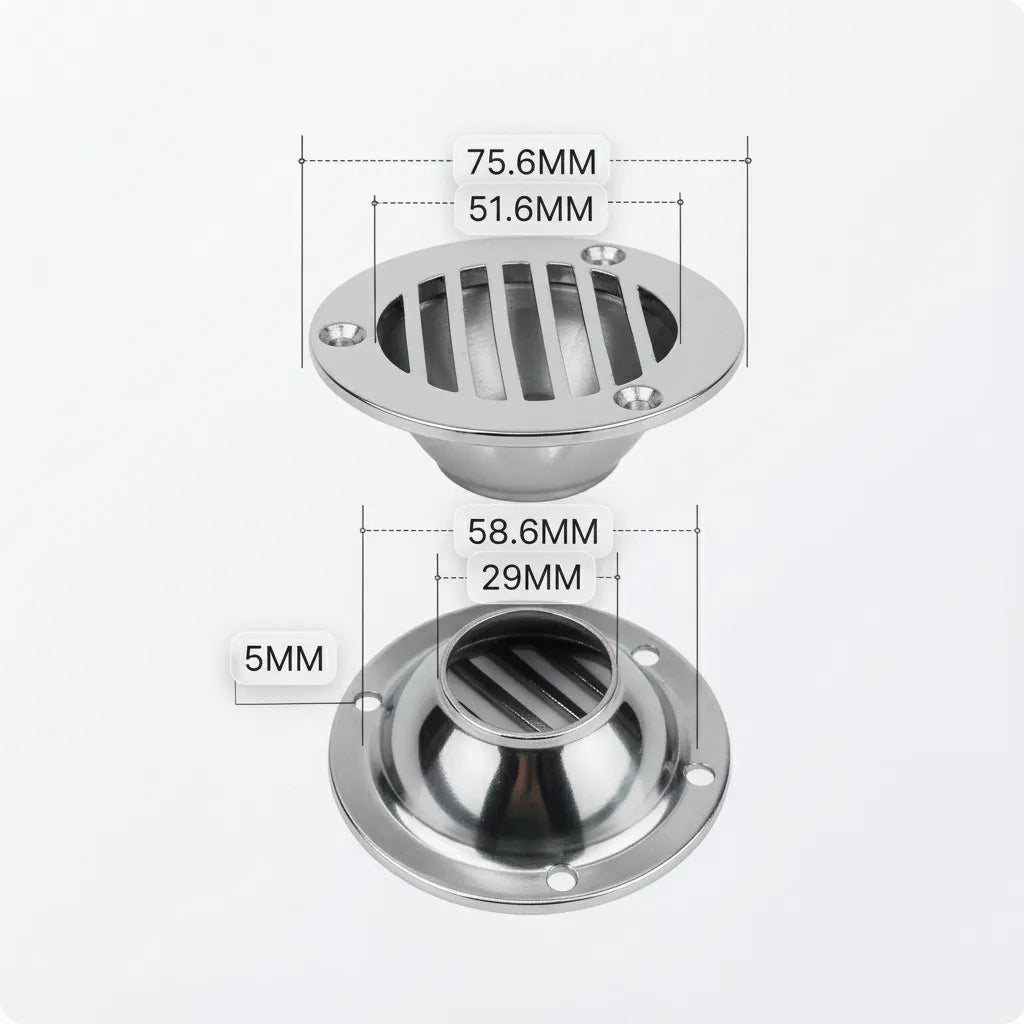

Approx. Flange Diameter 75.6 mm
Approx. Open Drain Diameter 51.6 mm
Approx. Base Width 58.6 mm
Approx. Overall Depth 29 mm
Application Suitable boat and yacht drainage installations

Important: All dimensions are approximate. Use the product dimension diagram and verify the actual mounting requirements before cutting or modifying a deck.

Dimensions and Installation Fit

When choosing a 76 mm boat deck drain, do not rely on the nominal size alone. The flange diameter, required cutout, base width and installation depth are different measurements and serve different purposes.

Before installing this flush-mount stainless steel deck drain:

  1. Measure the existing opening or planned mounting cutout.
  2. Compare the flange diameter and base dimensions with the available mounting surface.
  3. Check the deck thickness and clearance beneath the installation area.
  4. Confirm that the drain has a suitable discharge path and that water will not be trapped beneath the deck.
  5. Select marine-compatible sealant and fasteners appropriate for the deck material and installation conditions.
  6. After installation, check the seal and drainage function before returning the vessel to service.

For installations where water ingress could affect the vessel structure or safety, have a qualified marine installer confirm the fit and sealing method.

Material, Finish and Maintenance

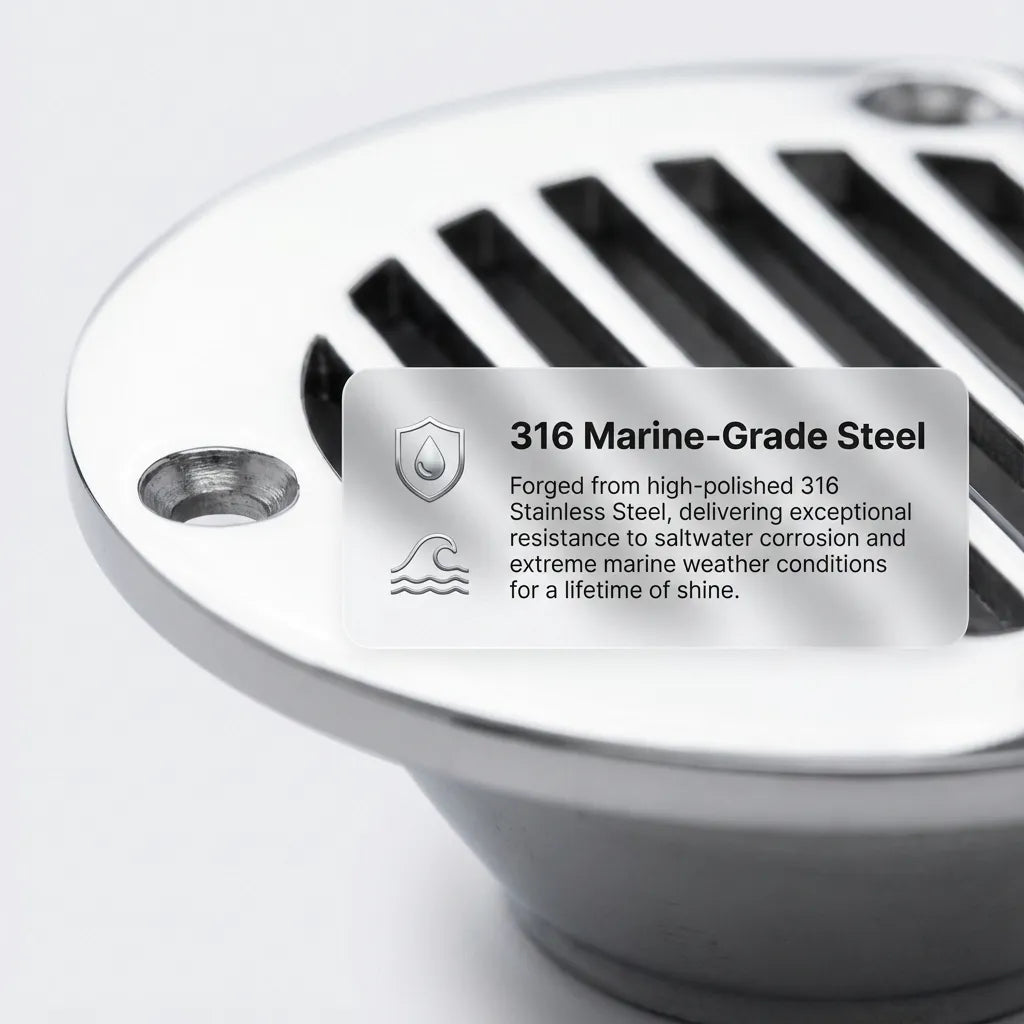

AISI 316 stainless steel is commonly used for marine hardware because of its corrosion resistance. However, exposure to saltwater, deposits, crevices and dissimilar metals can still contribute to corrosion over time.

For routine maintenance:

  • Rinse the boat deck drain with fresh water after exposure to saltwater.
  • Remove accumulated debris from the slots and drain opening.
  • Inspect the mounting area and seal periodically.
  • Check for staining, corrosion or loose fasteners.
  • Use cleaning products suitable for polished 316 stainless steel.

Regular cleaning and inspection help maintain the appearance and function of the marine drainage fitting.

Frequently Asked Questions

What is the actual flange diameter of this 76 mm boat deck drain?

The approximate flange diameter is 75.6 mm. The open drain diameter is approximately 51.6 mm, so these measurements should not be treated as interchangeable.

Is 76 mm the required installation cutout size?

Not necessarily. The 76 mm designation is the nominal product size, while the flange diameter, base width and required cutout are separate measurements. Confirm the installation dimensions using the product drawing before drilling or cutting.

What does tubeless deck drain mean?

Tubeless describes the drain's construction style. It does not mean that every installation can operate without a suitable drainage path. Confirm the discharge arrangement and mounting conditions for your boat.

Is this stainless steel deck drain suitable for saltwater use?

AISI 316 stainless steel is commonly selected for marine applications, including saltwater environments. Actual service life depends on installation, exposure, cleaning and maintenance.

Will this drain fit every boat or yacht deck?

No. Compatibility depends on the mounting opening, deck thickness, clearance below the deck, drainage routing and sealing requirements. Compare all relevant dimensions before ordering.

Ordering and Shipping

Check the product dimensions and installation requirements before adding this 76 mm 316 stainless steel boat deck drain to your cart.

Shipping costs and available services are calculated at checkout based on the destination and order details.

For installation or product-fit questions, contact AirowMarine before ordering.
