Low Profile Automatic Marine Bilge Pump - 12V/24V DC, 800/1100 GPH
The SEAFLO Low Profile Automatic Marine Bilge Pump is designed for compatible boat bilge drainage systems. Available in listed 12V and 24V DC model options, with 800 GPH and 1100 GPH flow-rate configurations, this pump series offers options for different marine drainage requirements.
Its compact horizontal design is intended for installations where vertical clearance is limited. The listed outlet adapter options provide connection choices for compatible discharge hoses. Actual pumping performance depends on the selected model, supply voltage, discharge height, hose routing, and plumbing restrictions.
Before ordering, confirm the exact model, voltage, flow rate, configuration, dimensions, and included outlet adapters. Not every combination may be available.
Product Specifications
| Specification | Details |
|---|---|
| Brand | SEAFLO, subject to confirmation of supplied product branding |
| Product Type | Low Profile Automatic Marine Bilge Pump |
| Application | Marine Bilge Water Drainage |
| Voltage Options | 12V DC or 24V DC, depending on selected model |
| Listed Flow Rates | 800 GPH or 1100 GPH, depending on selected configuration |
| 800 GPH Conversion | Approximately 3,028 LPH |
| 1100 GPH Conversion | Approximately 4,163 LPH |
| Listed Model Options | SFBP1 (12V) / SFBP2 (24V); verify exact model identification |
| Configuration Options | 14A, 14B, and 14C; confirm differences with the supplier |
| Housing | Marine-Use Polymer, as Specified by Supplier |
| Pump Design | Low Profile Horizontal Configuration |
| Outlet Adapter Options | 3/4 in (19 mm), 1 in (25 mm), and 1-1/8 in (29 mm), subject to selected kit contents |
| Ignition Protection / CE / RoHS | Verify documentation for the exact model and voltage variant |
| Continuous-Duty Rating | Confirm with manufacturer |
| Dimensions | Refer to the confirmed product drawing |
| Availability | Confirm current inventory before ordering |
Key Features

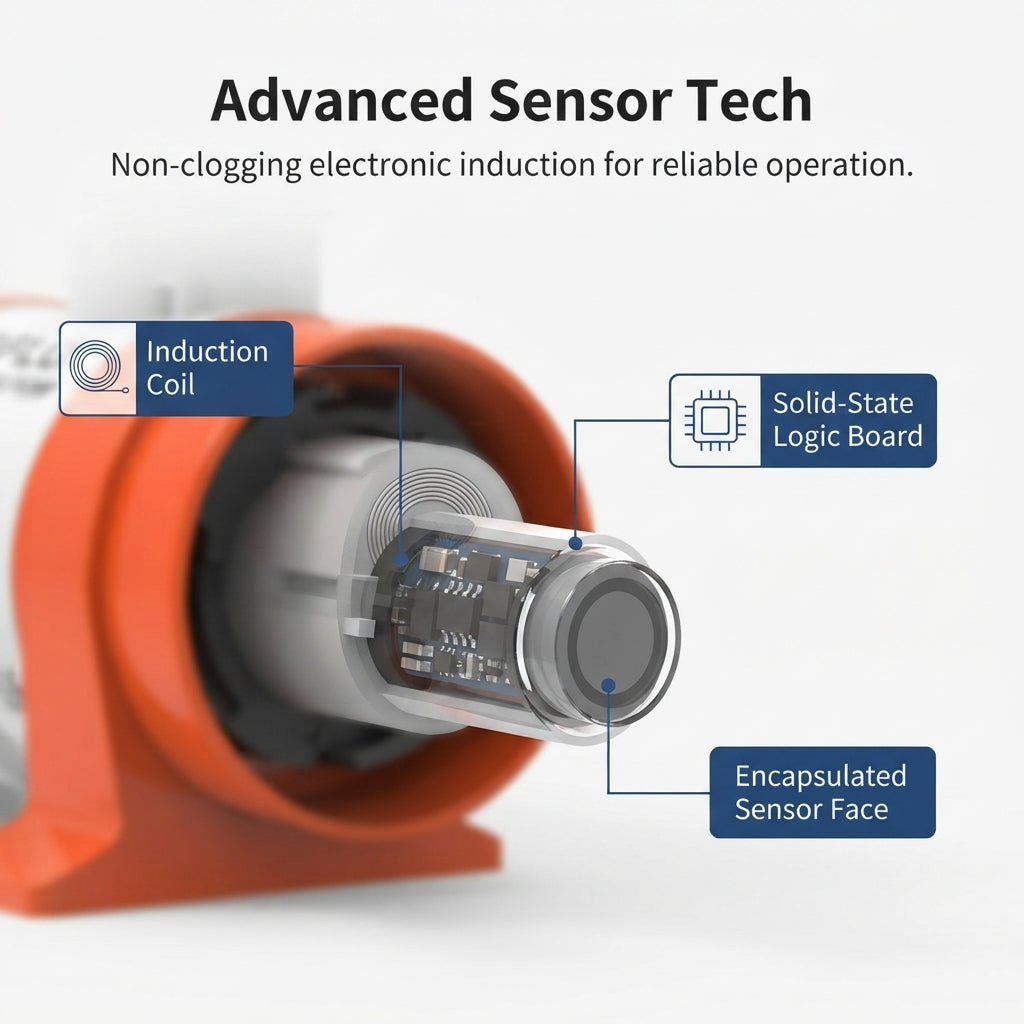

Automatic Bilge Water Drainage
This pump series is listed as automatic and is intended to help remove accumulated water from compatible boat bilge compartments. Check the selected model's operating instructions to confirm its automatic activation method, electrical connections, and operating conditions before installation.
12V and 24V DC Model Options
Select a pump model that matches your vessel's electrical system. The supplied listing identifies SFBP1 as a 12V model and SFBP2 as a 24V model; confirm the exact model and voltage on the product label before connecting the pump.
- SFBP1: Listed as 12V DC.
- SFBP2: Listed as 24V DC.
Do not connect a 12V pump to a 24V supply unless the manufacturer explicitly approves that configuration.
800 GPH and 1100 GPH Flow Options
The listed flow-rate options are 800 GPH and 1100 GPH. GPH means gallons per hour. These figures describe the listed flow options and should not be treated as a guarantee of actual installed output.
- 800 GPH: Approximately 3,028 liters per hour.
- 1100 GPH: Approximately 4,163 liters per hour.
Actual flow depends on discharge height, hose diameter and length, fittings, supply voltage, and plumbing restrictions. Review the manufacturer's performance data when selecting a pump for a specific bilge system.
Compact Low Profile Horizontal Design
The low profile horizontal configuration is intended for bilge compartments where vertical clearance may be limited. Compare the actual pump dimensions, inlet position, outlet direction, and required service clearance with your available installation space before ordering.

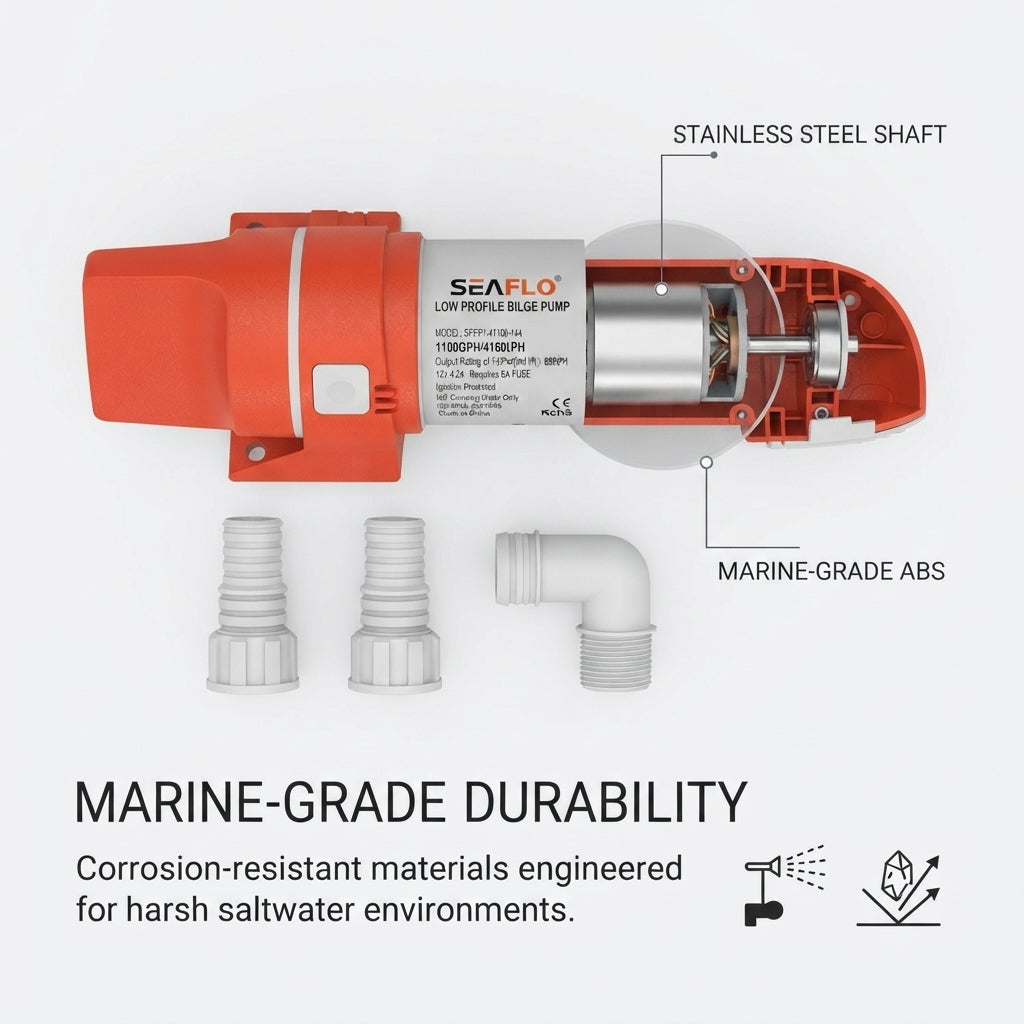

Marine-Use Polymer Housing
The pump is described as having a marine-use polymer housing. Confirm the exact material specification with the supplier if UV resistance, chemical exposure, or another environmental requirement is important for your installation.

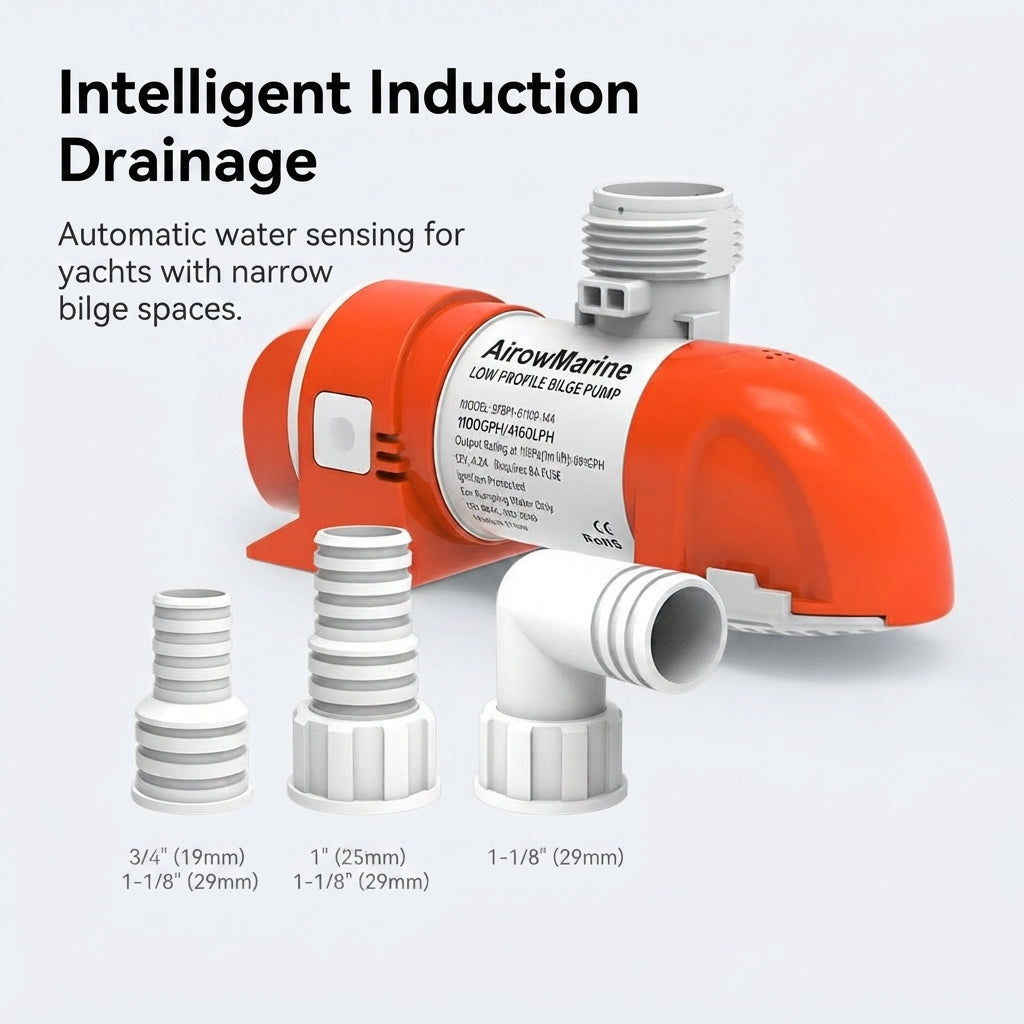

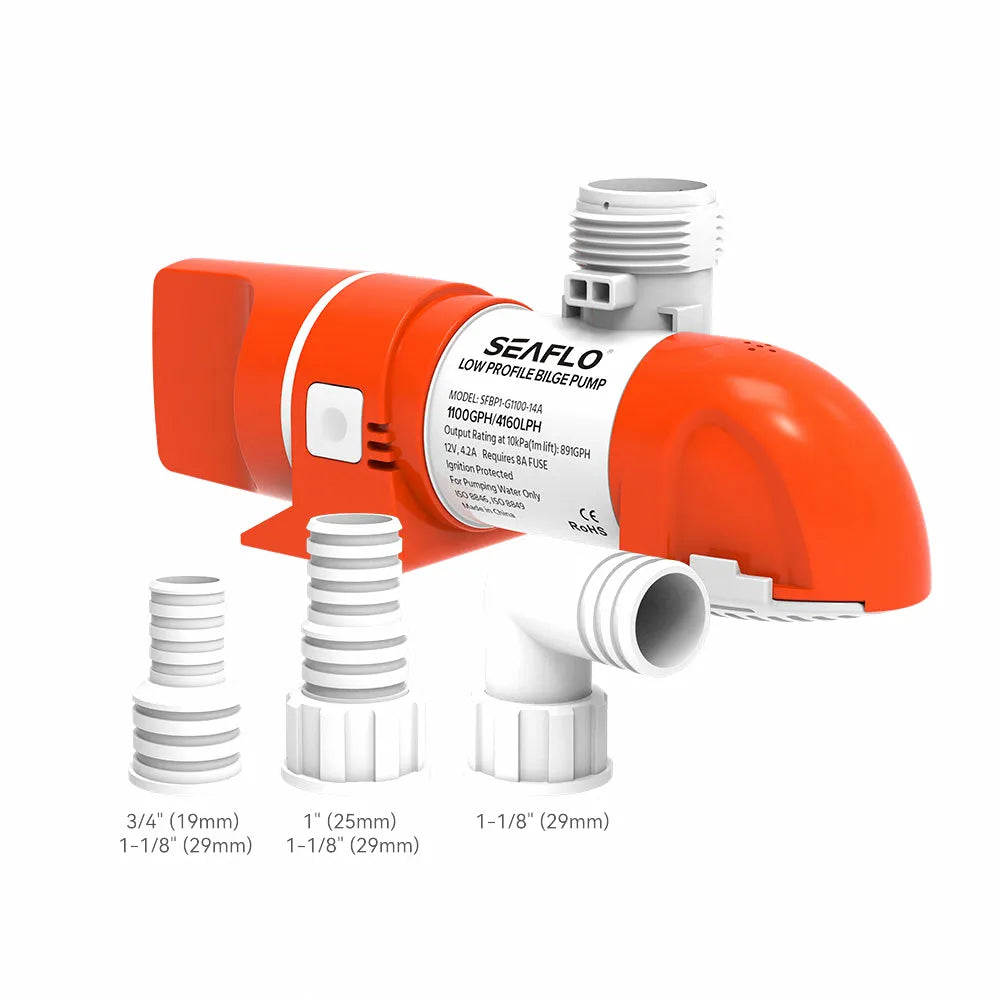

Multiple Outlet Adapter Options
The listed outlet adapter sizes are 3/4 in (19 mm), 1 in (25 mm), and 1-1/8 in (29 mm). Confirm which adapters are included with the selected model and match the discharge hose to the correct outlet connection.
Marine Applications

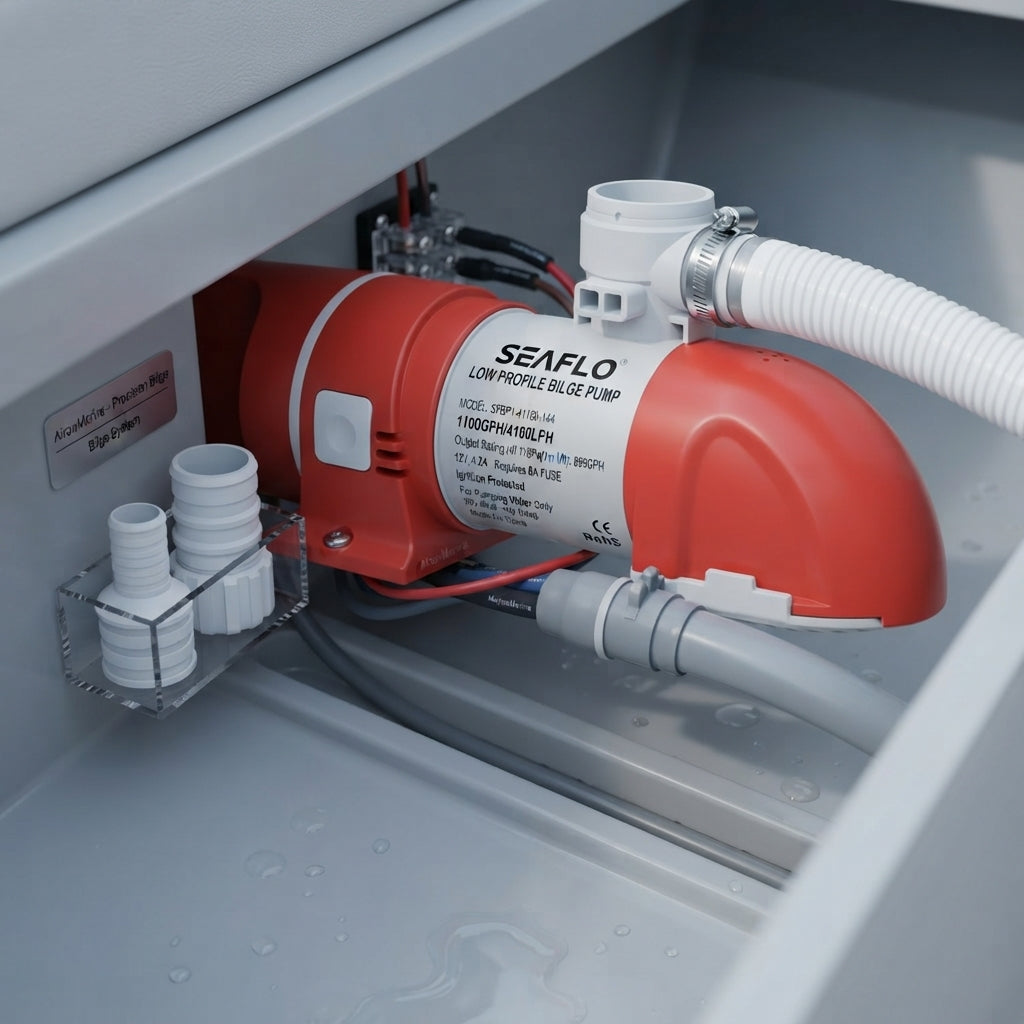

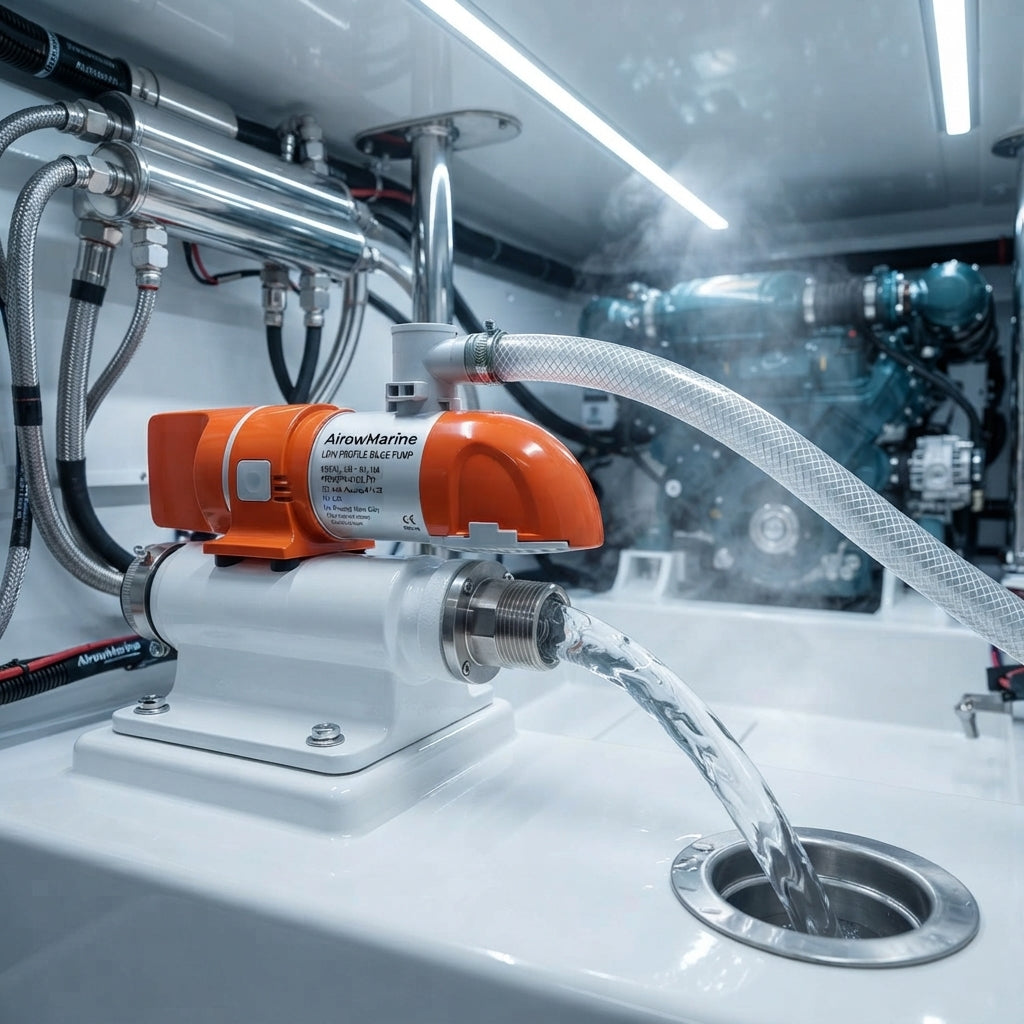

This low profile automatic bilge pump series is listed for compatible marine drainage installations, including applications on:
- Yachts
- Bass boats
- Pontoon boats
- Center console boats
- Sailing vessels
- Other compatible recreational boats
Suitability depends on the required drainage capacity, installation space, electrical system, and discharge plumbing. Confirm the specifications for your vessel before ordering.

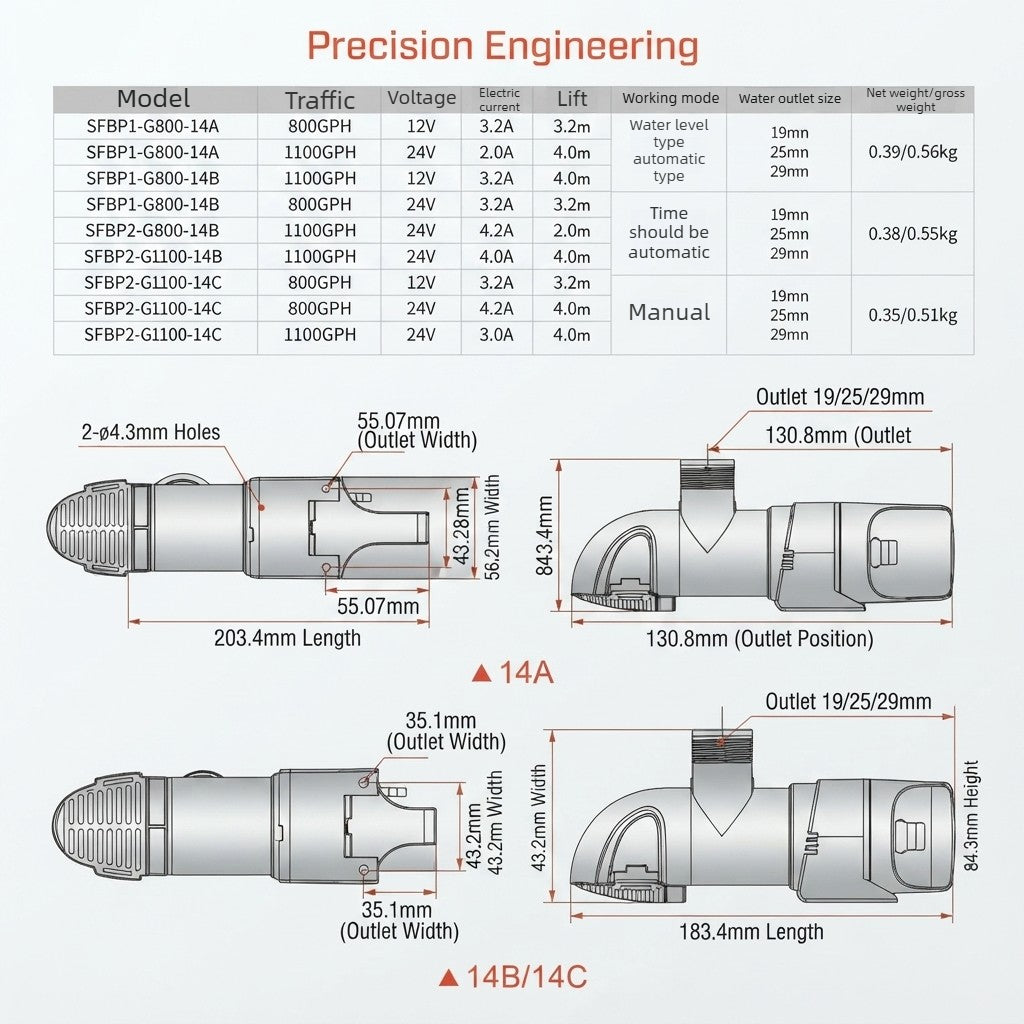

Model Selection and Compatibility
The product listing includes multiple model and configuration options. The exact relationship between model number, voltage, flow rate, and configuration must be confirmed with the supplier. Do not assume that every combination is available.
| Selection | Listed Options |
|---|---|
| Model | SFBP1 / SFBP2 |
| Voltage | 12V DC / 24V DC |
| Flow Rate | 800 GPH / 1100 GPH |
| Configuration | 14A / 14B / 14C |
Before ordering, check the following:
- Confirm whether your vessel uses a 12V or 24V DC electrical system.
- Select the required listed flow rate: 800 GPH or 1100 GPH.
- Confirm the exact model and configuration supplied.
- Check pump dimensions against the available bilge compartment.
- Verify the discharge hose diameter and included outlet adapter.
- Review the wiring diagram, fuse requirements, and installation instructions.
If you are unsure which model is suitable, contact AirowMarine with your vessel type, electrical voltage, existing pump model, and required hose diameter.
Frequently Asked Questions
What is a low profile automatic bilge pump?
It is a marine drainage pump designed to remove accumulated water from a compatible boat bilge compartment. Its low profile horizontal design may be useful where vertical installation clearance is limited.
What flow rates are available?
The listed options are 800 GPH and 1100 GPH. The selected model determines the applicable flow specification. Actual output may vary with discharge height, hose routing, voltage, and plumbing resistance.
What does 1100 GPH mean?
GPH means gallons per hour. The listed 1100 GPH flow rate is approximately 4,163 liters per hour. This is a nominal conversion of the listed figure, not a guarantee of installed pumping output.
What outlet hose sizes are supported?
The listing identifies 3/4 in (19 mm), 1 in (25 mm), and 1-1/8 in (29 mm) outlet adapter options. Confirm which adapter is supplied with your selected configuration and use a compatible discharge hose.
Can this pump be installed on a pontoon or bass boat?
The product is listed for compatible yachts, bass boats, pontoon boats, center console boats, and sailing vessels. Confirm the required flow rate, voltage, dimensions, and plumbing connections for your specific boat.
Does the pump operate automatically?
The product is listed as an automatic bilge pump. Check the manufacturer's instructions for the automatic activation method, wiring arrangement, and operating conditions of the selected model.
Is the pump ignition protected and CE/RoHS compliant?
The supplied product information describes ignition protection and CE/RoHS compliance. Verify the relevant documentation for the exact model and voltage variant before relying on these claims for installation or regulatory purposes.
Is the pump suitable for continuous operation?
Continuous-duty suitability has not been confirmed in the information provided. Follow the manufacturer's operating instructions and duty-cycle specifications for the selected model.
Availability and Shipping
Inventory should be confirmed before ordering. Shipping time and available delivery services depend on the destination, selected shipping method, and order processing requirements. Applicable shipping charges are shown during checkout when available.
For model selection, product specifications, or fitment questions, contact AirowMarine through the store's customer support channel.
Product Compatibility Disclaimer
Confirm the selected model, voltage, flow rate, configuration, pump dimensions, outlet connection, and electrical requirements before ordering. Product specifications and compliance claims should be checked against the actual supplied model and manufacturer documentation.
SEAFLO is referenced for product identification where applicable. AirowMarine is an independent seller. Brand names are used for identification purposes and do not imply manufacturer affiliation unless expressly stated.
