Hero shot of a 316 stainless steel M8 eye bolt on a pure white background showing high-polish finish and precision threading.
Industrial application showing an M12 eye bolt used for lifting a heavy grey electric motor with a synthetic sling in a warehouse setting.

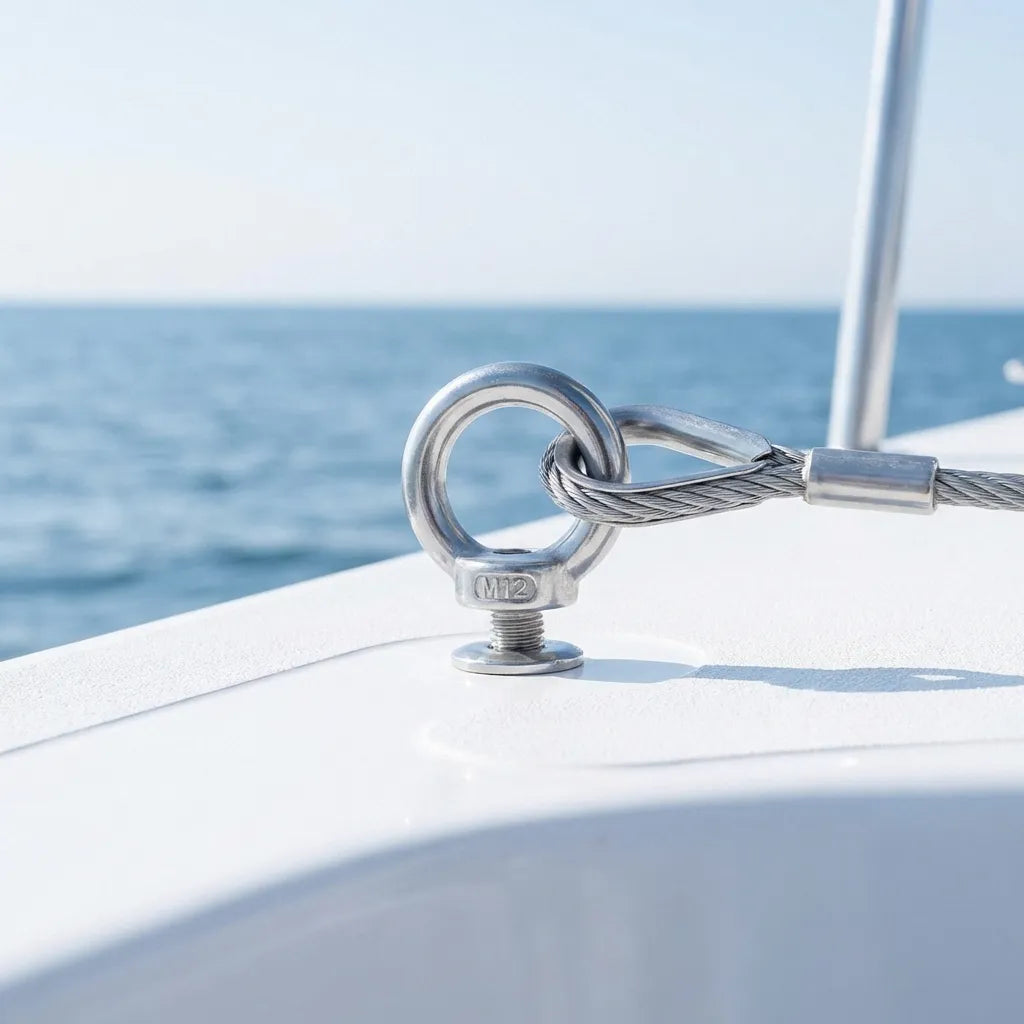

Marine application of an M12 316 stainless steel eye bolt mounted on a white boat deck securing a wire rope thimble and cable.

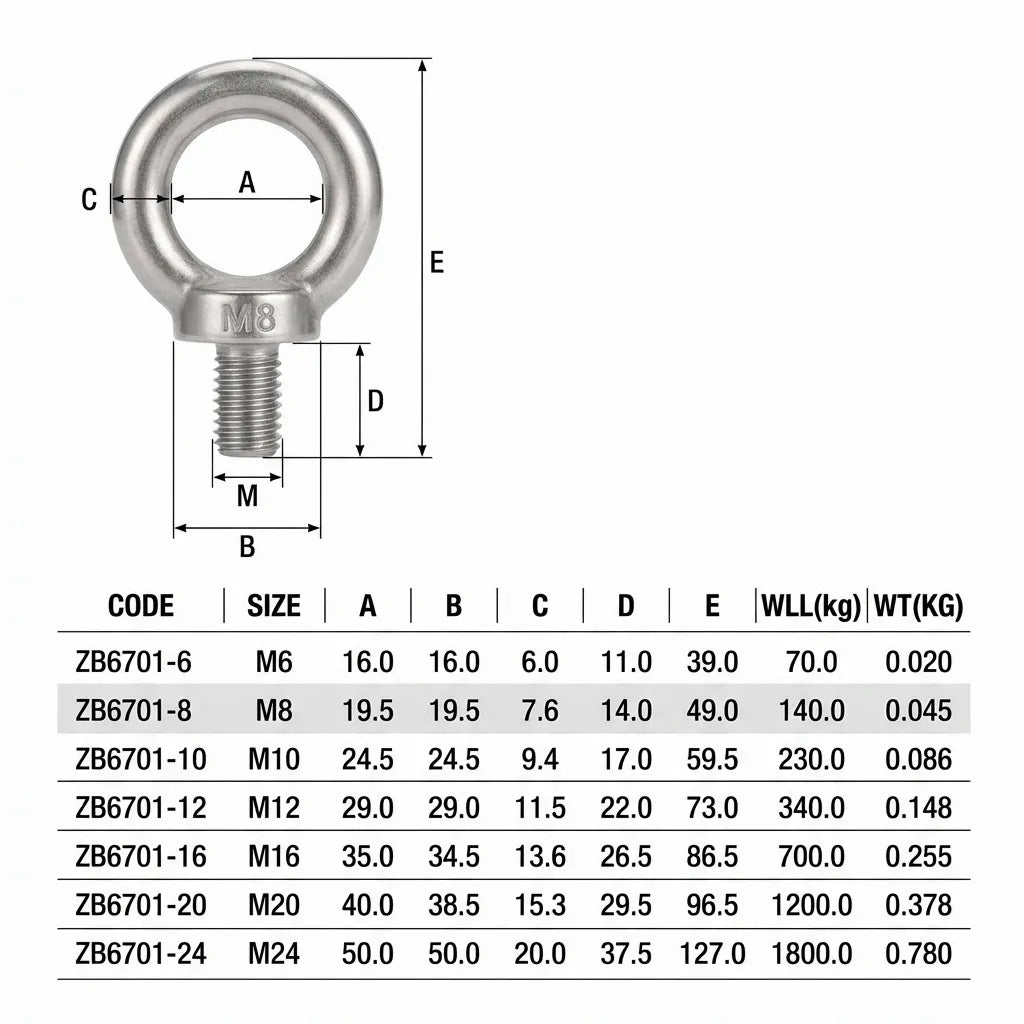

Technical diagram and specification table showing dimensions A through E and Working Load Limits (WLL) from 70kg to 1800kg for sizes M6 to M24.

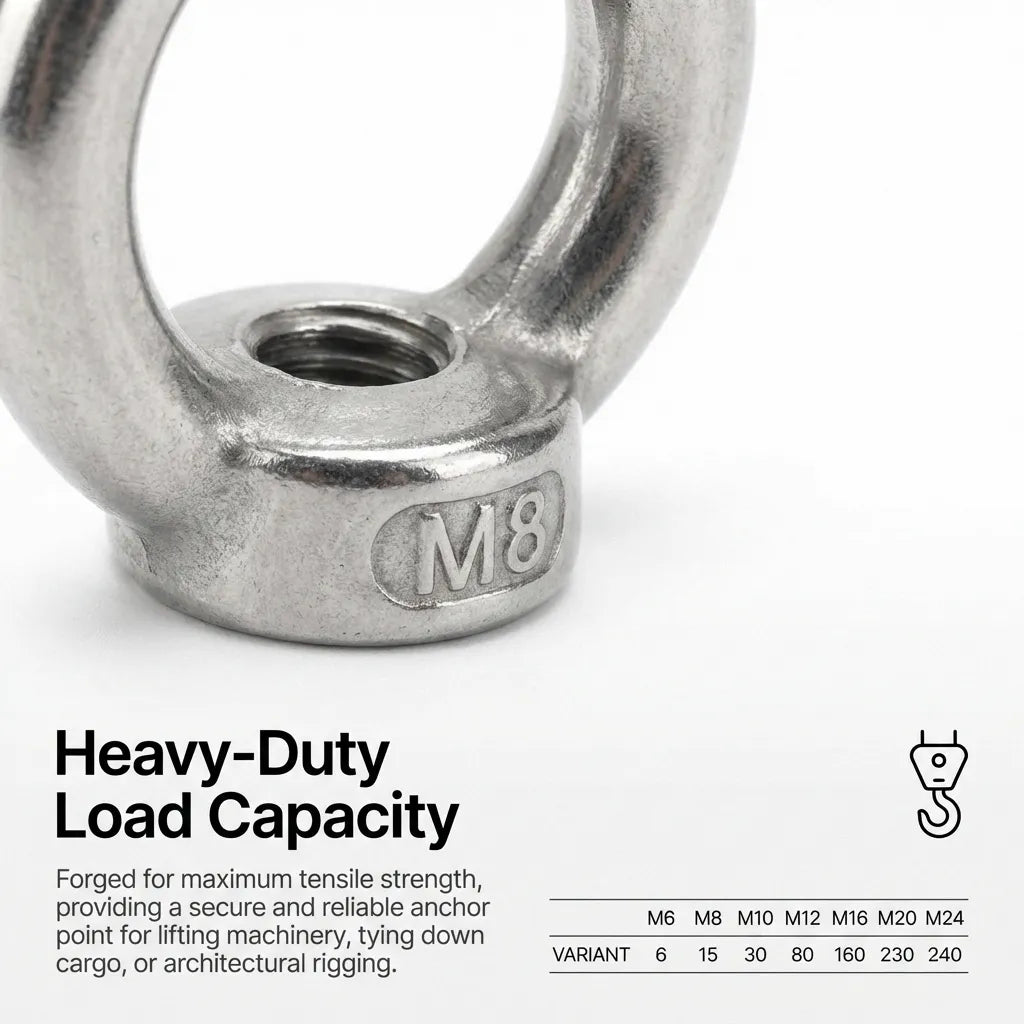

Close-up macro shot of the M8 engraving on the eye bolt base with a table highlighting tensile strength and load capacity for various sizes.
Material comparison infographic highlighting 316 stainless steel's superior corrosion resistance over 304 grade for marine environments.
Overhead view of a polished eye bolt next to its corresponding hex nut, demonstrating the mirror-like surface and burr-free finish.
Product Slideshow GIF

316 Stainless Steel Lifting Eye Bolt

Marine Grade Forged (M6-M24) | 7 options

Regular price$0.98
Size: M6

Size

Order preview

1 unit at $0.98 USD $0.98 USD

Merchandise subtotal 0.02 kg estimated packaged weight

Delivery options

1 unit / 0.02 kg packaged

Final rate confirmed at checkout.
Secure checkout Shipping and taxes confirmed before payment.
  • American Express
  • Apple Pay
  • Bancontact
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay

Product information

Product overview

Check dimensionsReview the selected option and product drawings.
Confirm compatibilityMatch materials, connections and installation clearance.
Plan the orderCombine compatible items before checking delivery.

316 Stainless Steel Lifting Eye Bolt - Marine Grade Forged (M6-M24) is listed in Marine Pad Eyes & Eye Bolts and is intended for the marine use described below. Review the listed dimensions, configuration and installation requirements before ordering.

Availability: In stock and available to order. Orders are prepared from current stock. Delivery timing depends on the destination and selected shipping method.

Product details

  • Product type: Marine Pad Eyes & Eye Bolts
  • Material: 316 Stainless Steel
  • Available options: Size: M6, M8, M10, M12, M16, M20, see selector for all options
  • Compatibility reference: Yacht, Bass Boat, Pontoon, Commercial Vessel

marine-use Marine Rigging & Industrial Lifting Solution

Engineered for demanding environments, our 316 Stainless Steel Eye Bolts are forged for strong tensile strength and durability. Unlike standard 304-grade fasteners, these AISI 316 components offer effective resistance to saltwater oxidation, chloride pitting, and harsh chemical exposure.

Key Engineering Specifications:

  • Precision Polished Finish: Mirror-like surface eliminates micro-burrs, protecting synthetic ropes and wire cables from abrasion.
  • Heavy-Duty Load Ratings: Available in sizes M6 through M24, with Working Load Limits (WLL) ranging from 70kg to 1800kg.
  • Machined Tolerances: Exacting thread pitch (1.0mm to 3.0mm) helps provide a secure, vibration-resistant fit for industrial machinery and marine decks.
  • Marine-Grade Integrity: Forged construction provides high structural density for critical overhead lifting and architectural rigging applications.

Whether you are outfitting a yacht deck or securing industrial motors, AirowMarine hardware delivers the 'Engineering Trust' required for safety-critical operations.

Before ordering

  • Compare the listed dimensions with the installation area or existing part.
  • Select the correct size, model, voltage or configuration where options are offered.
  • Installation method and required hardware can vary by boat and mounting surface.

Shipping note: Shipping is calculated at checkout based on destination, package weight and service. Combining several small accessories in one order can reduce the delivery cost per item.
