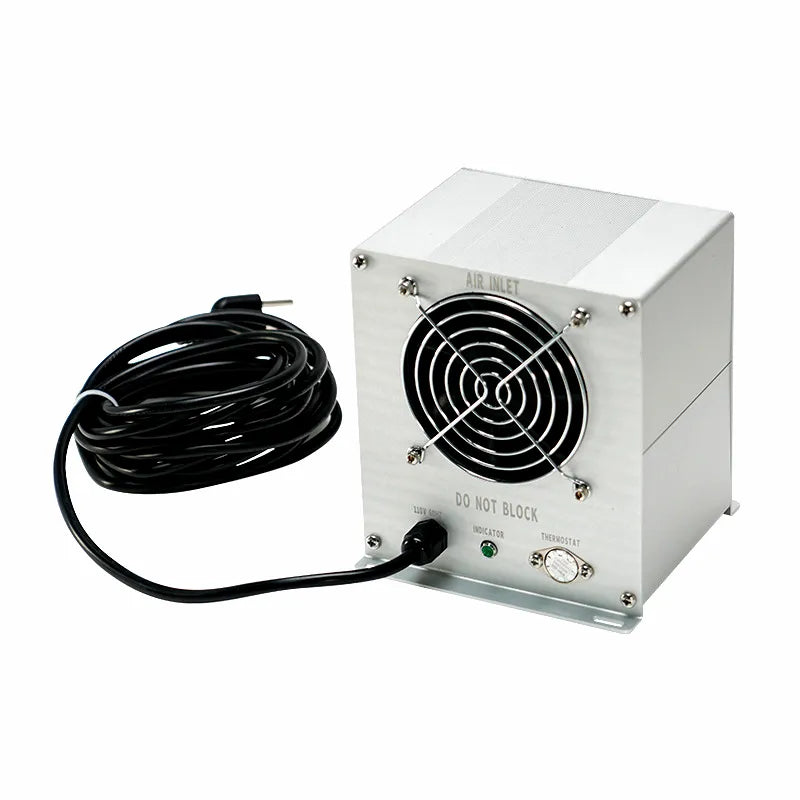

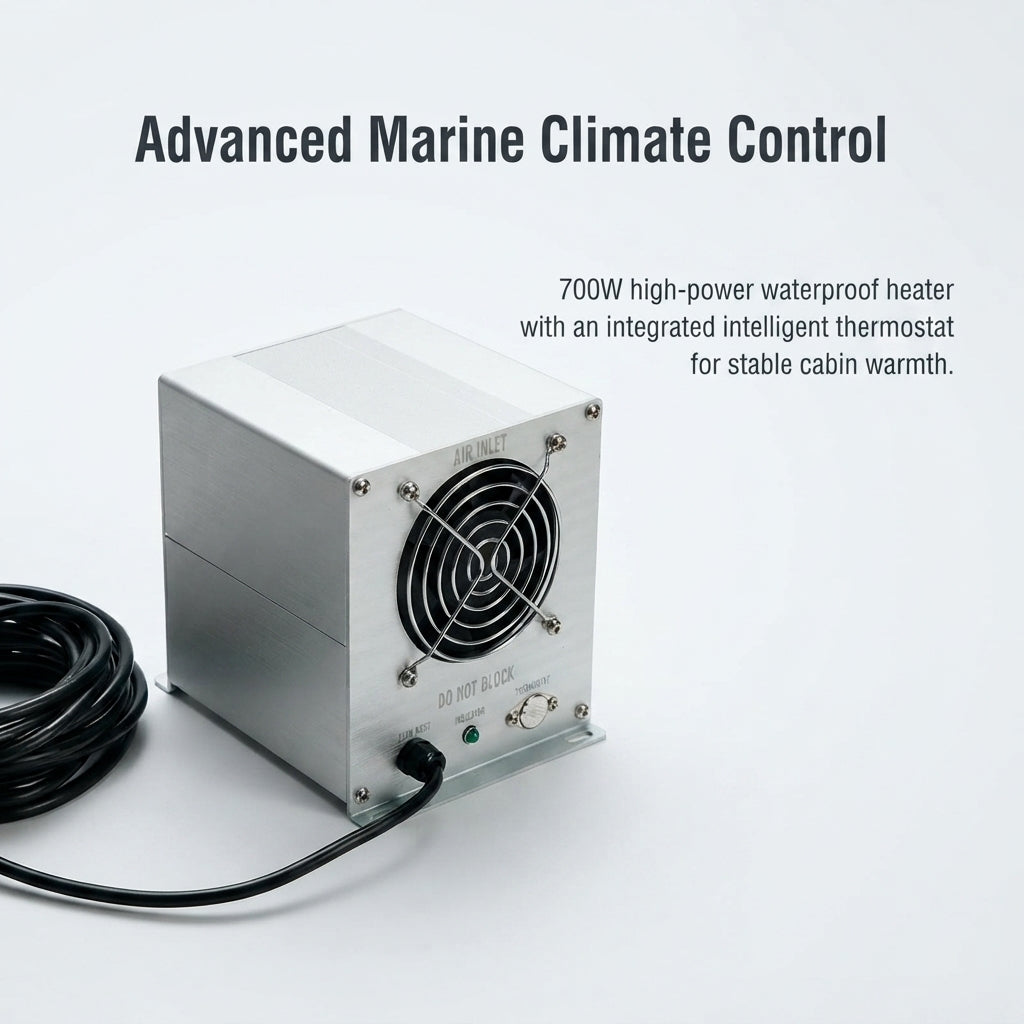

700W Marine PTC Heater with Integrated Thermostat - Anti-Condensation Enclosure Heater
The 700W Marine PTC Heater with Integrated Thermostat is designed for temperature management in suitable marine and industrial equipment spaces, including electrical enclosures, equipment cabinets, and pump rooms. Its PTC heating element and integrated thermostat are intended to help maintain a defined temperature range in applications where low temperatures and moisture-related condensation are concerns.
This 700W marine PTC heater is listed with customizable voltage options. Before ordering, confirm the available voltage configuration, electrical requirements, installation dimensions, and environmental protection rating for your intended application.
The specified thermostat is designed to switch the heater ON at 5°C (41°F) and OFF at 15°C (59°F). This automatic temperature-control cycle starts heating when the sensed temperature reaches the lower threshold and stops heating when the upper threshold is reached.
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Marine PTC Heater |
| Rated Heating Power | 700W |
| Heating Technology | PTC (Positive Temperature Coefficient) |
| Temperature Control | Integrated Thermostat |
| Thermostat ON Temperature | 5°C (41°F), as specified |
| Thermostat OFF Temperature | 15°C (59°F), as specified |
| Voltage | Customizable options; confirm the available configuration before ordering |
| Housing Material | Anodized aluminum, subject to confirmation against the supplied model specification |
| Installation Style | Screw-mount design, subject to the manufacturer's instructions |
| Electrical Connection | Press-type connectors, subject to the selected model specification |
| Intended Applications | Marine electrical enclosures, equipment cabinets, pump rooms, and other suitable enclosed equipment spaces |
| Product Reference | 700W Marine PTC Heater |
Important Installation Notice: Confirm the rated voltage, frequency, current, connection requirements, environmental protection rating, and installation clearances for the exact model before purchase. Customizable voltage does not mean that one unit supports every voltage.
Key Features of the 700W Marine PTC Heater
1. 700W PTC Heating Element
The 700W PTC heating element provides heat for suitable enclosed equipment spaces. PTC heating technology is used in thermal-management applications where controlled heating is required.
Select the heater according to enclosure size, heat-loss conditions, ambient temperature, and equipment requirements. The 700W rating alone does not guarantee a specific enclosure temperature.

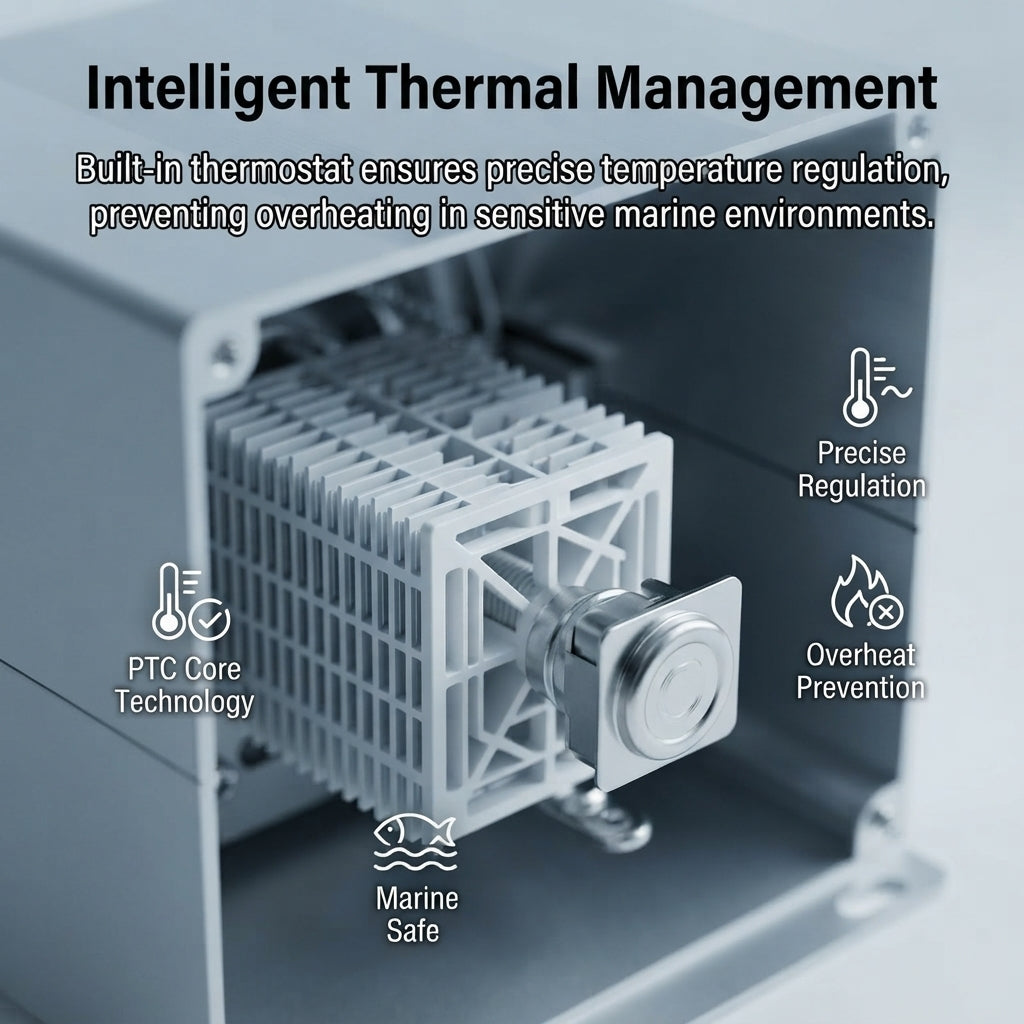

2. Integrated Thermostat: 5°C ON / 15°C OFF
The integrated thermostat provides automatic temperature control based on the specified switching thresholds:
- Heater switches ON at 5°C (41°F): When the sensed temperature reaches the lower threshold, the heater starts.
- Heater switches OFF at 15°C (59°F): When the sensed temperature reaches the upper threshold, the heater stops.
This control cycle helps regulate the temperature of the intended installation space without requiring continuous heating. Actual temperatures throughout an enclosure may vary with sensor location, ventilation, insulation, ambient conditions, and heat loss. Confirm the thermostat sensing method and switching tolerances with the manufacturer.
3. Supports Condensation-Risk Management
Low temperatures and moisture can contribute to condensation on equipment surfaces. Heating a suitable enclosed space may help reduce condensation risk under appropriate operating conditions.
This marine enclosure heater is intended for thermal-management applications in suitable equipment cabinets, electrical enclosures, and pump rooms. Heating alone does not guarantee condensation prevention and does not replace appropriate enclosure sealing, ventilation design, drainage, or humidity management.

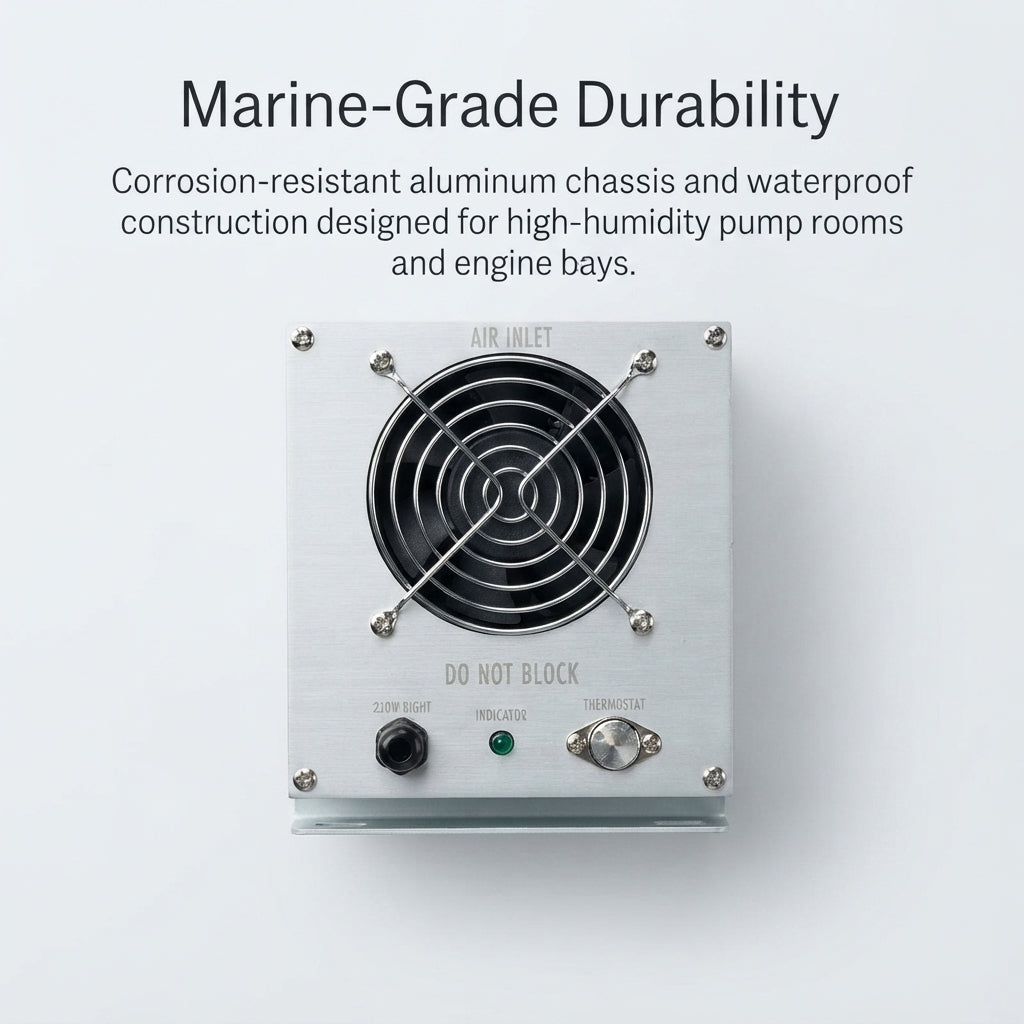

4. Aluminum Housing
The product is described as having an anodized aluminum housing. Confirm the exact alloy, surface treatment, and corrosion-resistance specifications with the supplier if these properties are critical to your installation.
Do not install the heater where direct exposure to seawater, salt spray, or other harsh conditions exceeds its verified environmental protection rating.

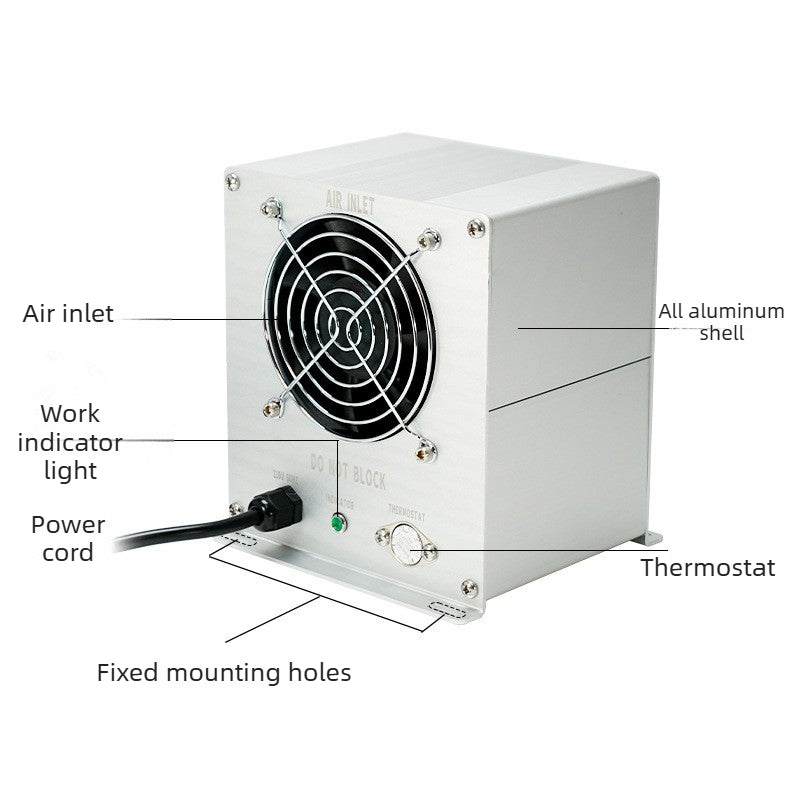

5. Practical Mounting and Electrical Connections
The product is described as having a screw-mount arrangement and press-type electrical connectors. These features may simplify installation when used according to the manufacturer's instructions.
Installation must account for electrical protection, wiring size, grounding requirements where applicable, clearance from surrounding materials, heat dissipation, and the operating environment. Use a qualified professional where required by applicable regulations.
Typical Applications
Marine Electrical Enclosures
For suitable marine electrical cabinets where temperature management is required to help reduce condensation risk associated with low temperatures.
Equipment Cabinets and Control Panels
May be considered as a cabinet heater for compatible equipment enclosures. Confirm enclosure dimensions, thermal requirements, and electrical compatibility before selecting the heater.

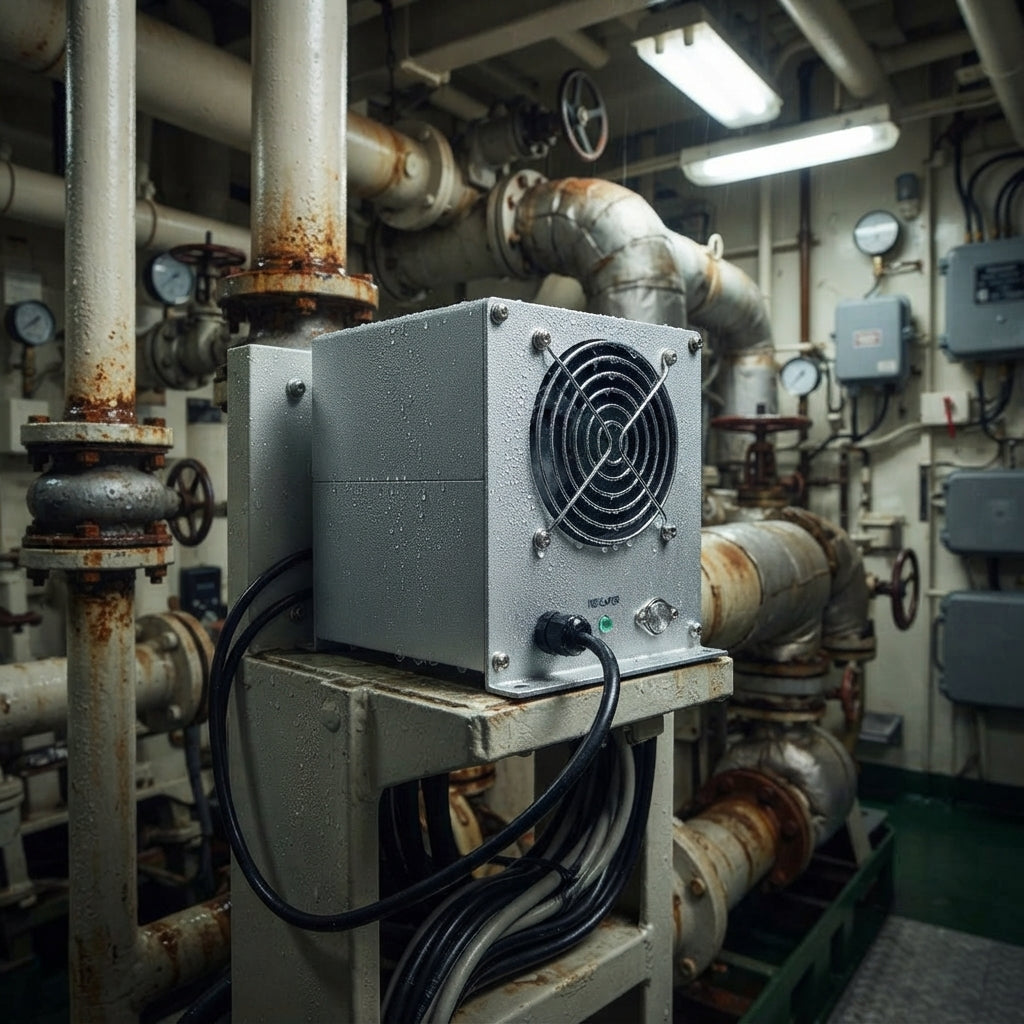

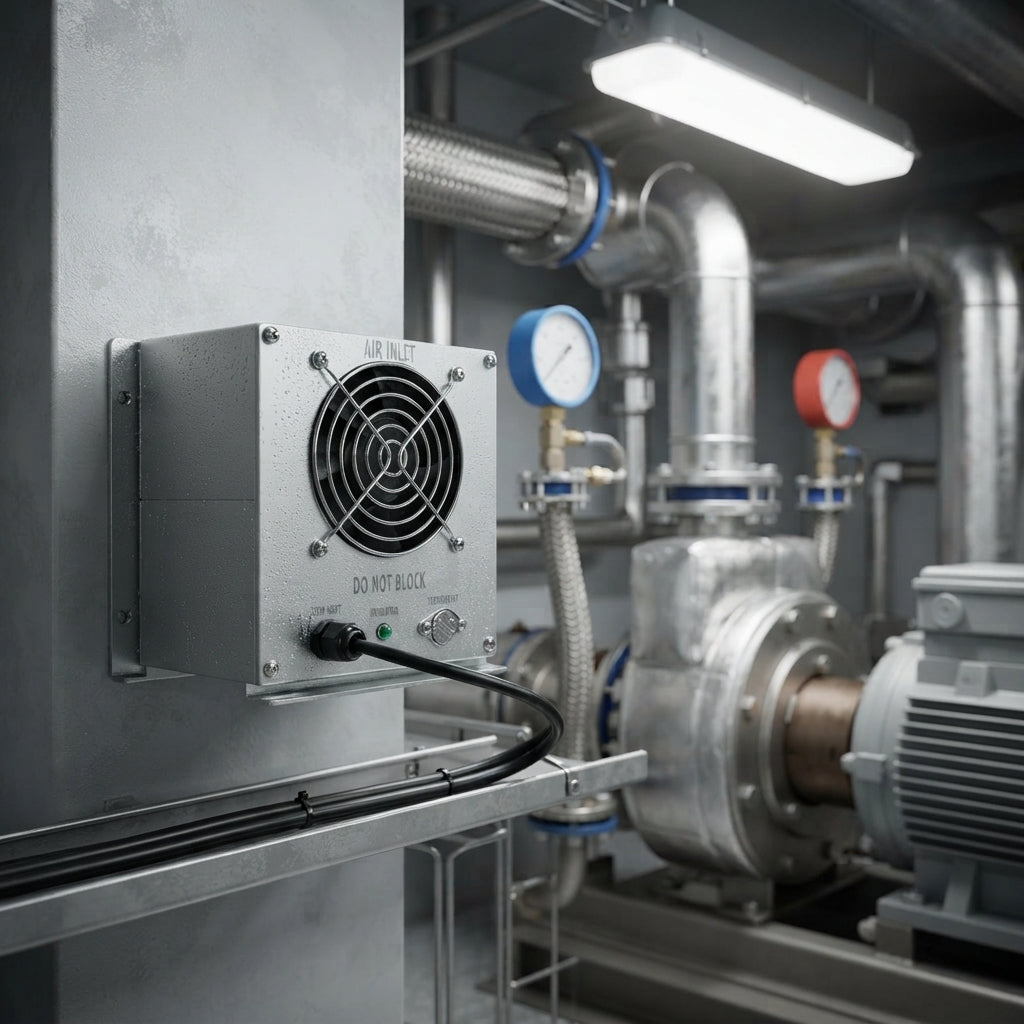

Pump Rooms and Marine Equipment Spaces
May be suitable for pump-room or equipment-space installations where supplemental heating is required, provided the heater's protection rating and installation conditions are appropriate for the location.
Shipboard and Industrial Equipment
Can be evaluated for marine service, industrial enclosures, and other equipment spaces requiring controlled heating, subject to the selected model's environmental and electrical specifications.
Application Note: This product is described as an equipment-space heater. Do not assume it is intended for direct human comfort heating in cabins or occupied spaces unless the manufacturer explicitly confirms that application.
Before Ordering
- Voltage configuration: Specify the required voltage and confirm that the corresponding model is available.
- Electrical requirements: Verify rated current, frequency, wiring, connector compatibility, and protective-device requirements.
- Temperature settings: Confirm that the thermostat is configured for 5°C ON and 15°C OFF.

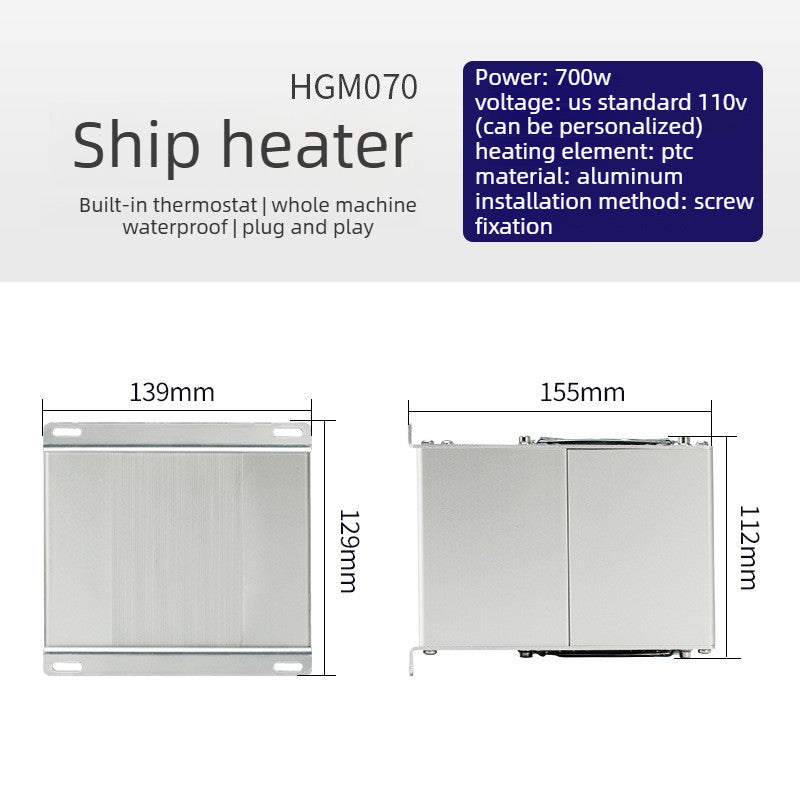

- Installation dimensions: Check the mounting dimensions and required clearances against the intended enclosure.
- Environmental protection: Confirm the IP rating or other applicable protection specification for the installation location.
- Housing material: Request confirmation of the housing alloy and surface treatment if these are essential requirements.
- Shipping: Contact AirowMarine to confirm shipping availability, cost, and delivery arrangements for your destination.
Frequently Asked Questions
What is the rated power of this marine heater?
The product is listed as a 700W marine PTC heater. Confirm the rated power and electrical specifications for the exact voltage configuration you intend to order.
At what temperature does the heater turn on and off?
The specified thermostat settings are 5°C (41°F) for switching ON and 15°C (59°F) for switching OFF. Confirm these settings and their tolerances with the supplier before purchase.
How does the 5°C ON / 15°C OFF thermostat work?
When the sensed temperature reaches the 5°C lower threshold, the thermostat switches the heater on. When the sensed temperature reaches the 15°C upper threshold, it switches the heater off. The heater then cycles according to the sensed temperature and the specified control thresholds.
Can this heater help reduce condensation in a marine electrical cabinet?
Heating a suitable enclosure may help reduce condensation risk under appropriate conditions. Actual performance depends on humidity, temperature differences, enclosure design, ventilation, and installation. The heater does not guarantee complete condensation prevention.
Is this a waterproof marine heater?
The product is described as a marine heater, but suitability for a particular wet or marine environment depends on its verified IP rating and installation conditions. Contact AirowMarine to confirm the protection rating before using it in areas exposed to water or salt spray.
Is the voltage customizable?
The product is listed with customizable voltage options. Confirm available configurations before ordering and ensure that the selected model matches the vessel's or equipment's electrical supply.
Where can this 700W PTC heater be installed?
Potential applications include suitable electrical enclosures, equipment cabinets, and pump rooms. The installation location must meet the heater's electrical, temperature, clearance, and environmental protection requirements.
How can I confirm whether this heater is suitable for my equipment?
Email AirowMarine with your required voltage, enclosure dimensions, operating environment, and intended application. The team can help confirm the available product configuration and the technical details that need to be checked before ordering.
Contact AirowMarine
For technical specifications, voltage confirmation, installation questions, or shipping information, contact AirowMarine:
Email: sales@airowmarine.com
Website: https://airowmarine.com/
Please include your required voltage, intended application, and installation details when requesting product confirmation.
Product Compatibility Notice: Confirm product specifications and application suitability against the manufacturer's documentation for the exact model. Performance depends on the installation environment and operating conditions. Do not assume waterproofing, corrosion resistance, or suitability for a particular marine location without verified specifications.
