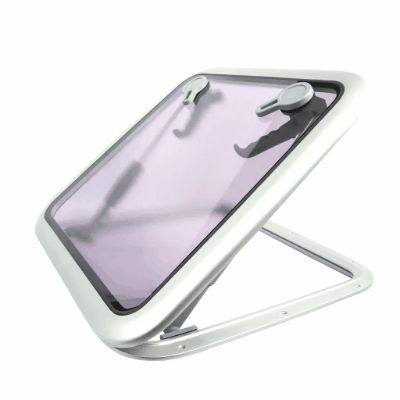

Anodized Aluminum Boat Hatch with Tinted Acrylic
Improve natural light and ventilation in your boat with an anodized aluminum boat hatch featuring tinted acrylic glazing and an opening support mechanism. Designed for suitable marine installations, this opening boat hatch combines a lightweight aluminum frame with a tinted window panel for a practical deck or cabin access solution.
Available in 11 square and rectangular size options, this marine deck hatch can be considered for new installations or replacement projects. Before ordering, compare the dimensions of your selected variant with the existing opening and available mounting space.
Key Features of This Marine Boat Hatch

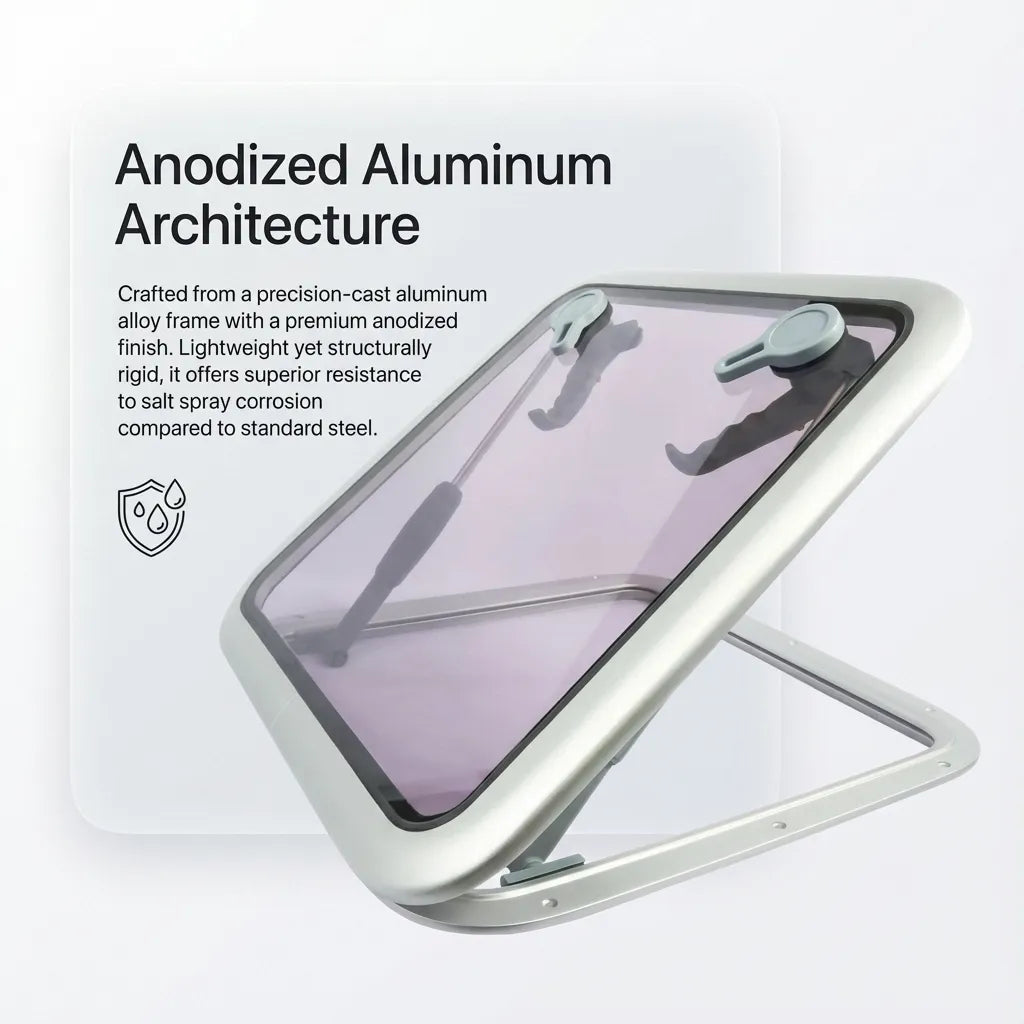

- Anodized aluminum frame: A lightweight frame with an anodized finish for suitable marine applications.

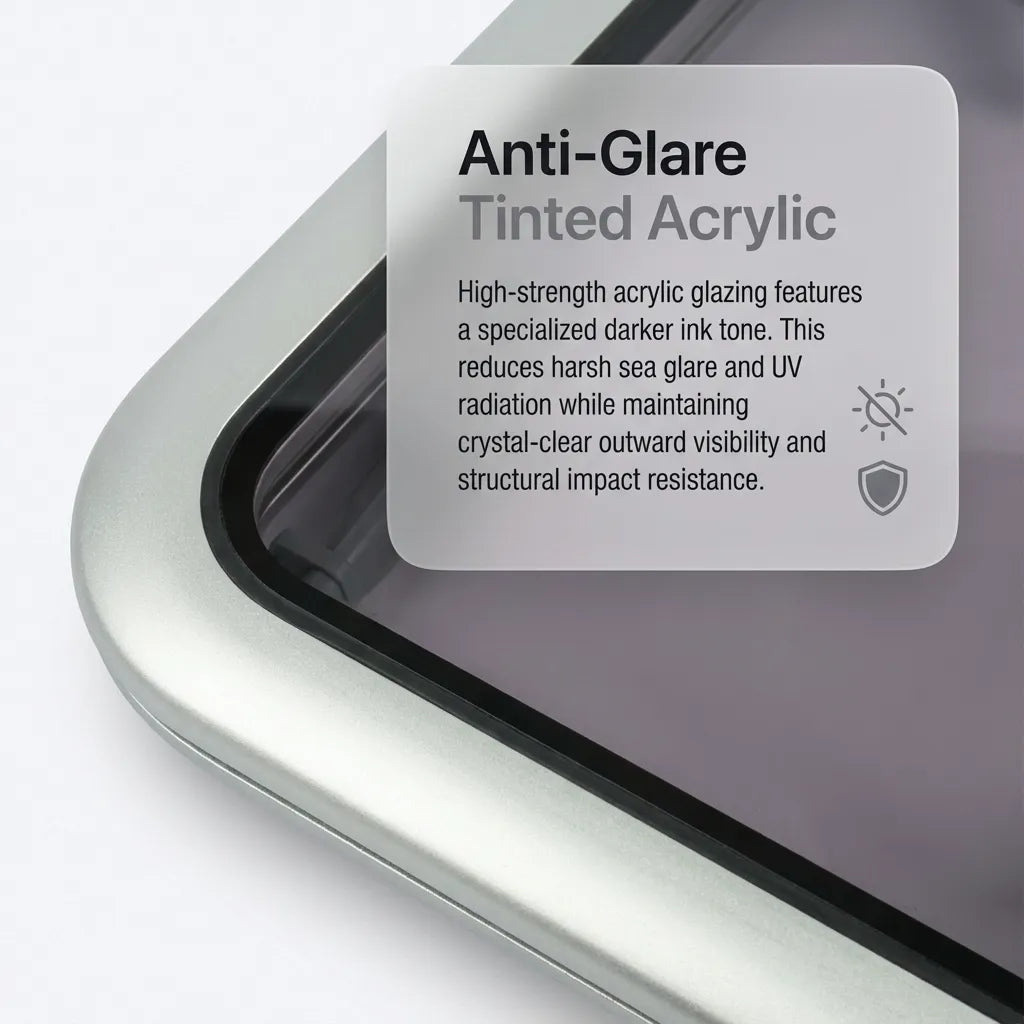

- Tinted acrylic glazing: Allows natural light into the cabin or enclosed space while creating a darker window appearance and helping reduce glare.
- Opening support mechanism: Supports the hatch in its designed open positions. Secure the hatch appropriately before moving the vessel.
- 11 size options: Choose from square and rectangular variants using the product size selector and dimension chart.
- Versatile installation applications: Suitable for compatible boat deck openings, cabin areas and other installations where the selected hatch dimensions and specifications meet the requirements.
- Replacement and upgrade projects: Compare the frame dimensions, cut-out size and mounting depth when selecting a hatch for an existing installation.
Product Specifications
| Product Name | Anodized Aluminum Boat Hatch with Tinted Acrylic |
|---|---|
| Product Type | Opening boat hatch / marine deck hatch |
| Frame Material | Anodized aluminum alloy |
| Glazing Material | Tinted acrylic |
| Available Configurations | 11 square and rectangular size variants |
| Opening Feature | Opening support mechanism |
| Applications | Compatible boat deck and cabin installations |
| Size Information | Refer to the selected variant and technical dimension chart |
| Brand | AirowMarine |
Important: Confirm the dimensions and features shown for your selected variant before purchase. Do not assume that the nominal size, outer frame size and required cut-out size are identical.

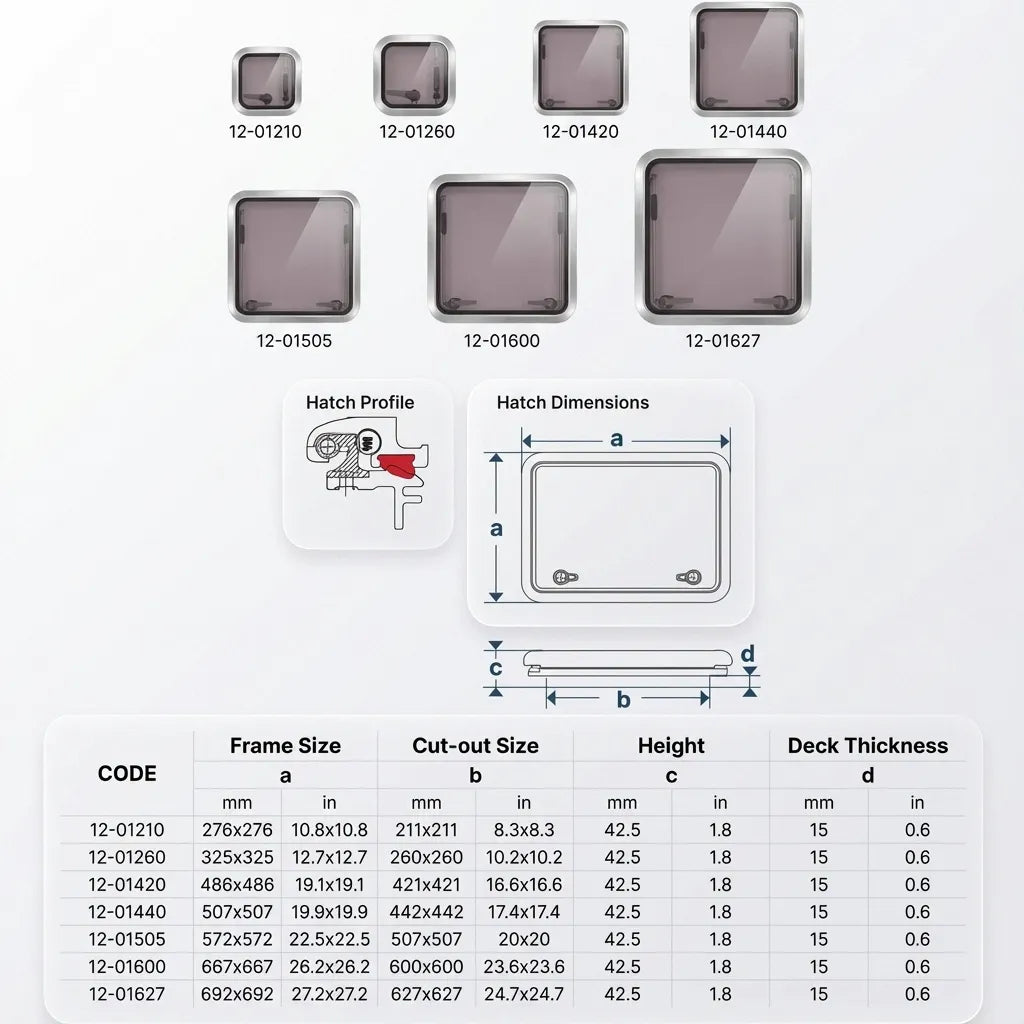

Boat Hatch Fitment and Measurement Guide
Choosing the correct marine hatch size is essential for a suitable installation. Before ordering this aluminum boat hatch, follow these steps:
- Check the dimension chart: Identify the measurements for the exact size variant you intend to purchase.
- Measure the existing opening: Record the cut-out length and width, outer frame dimensions and available installation depth.
- Check the mounting area: Make sure the surrounding surface is suitable for mounting and that sufficient clearance is available behind the opening.
- Check the opening mechanism: Confirm that the hatch can open and close without interfering with nearby equipment, fittings or interior structures.
- Compare before replacing: If replacing an existing boat hatch, compare the new hatch dimensions with the old frame and opening instead of relying on the boat model or nominal size alone.
If you are unsure which marine deck hatch size will fit, email sales@airowmarine.com with your opening measurements, the required size and clear installation photos. Our team can help you review the available product information before ordering.
Installation and Maintenance
Professional installation is recommended when the hatch is used in a marine deck or cabin structure. Follow the installation instructions supplied with the product and use compatible marine sealant and mounting hardware where required.
The installed water resistance of a boat hatch depends on correct sizing, surface preparation, sealing, fastening and ongoing maintenance. Do not assume a specific waterproof, IP or pressure rating unless it is stated in the product documentation or supported by testing.
For routine care:
- Rinse the frame with fresh water after exposure to saltwater.
- Use cleaning products suitable for anodized aluminum and acrylic.
- Avoid abrasive materials that may scratch the frame finish or tinted glazing.
- Inspect the seal, fasteners and opening support mechanism periodically.
- Address signs of seal deterioration or loose mounting hardware promptly.
Ordering, Shipping and Support
Select your preferred size variant and review the product specifications before adding the hatch to your cart. Available shipping services, charges and delivery estimates are shown during checkout for your destination.
For help with dimensions, installation fit or shipping questions, contact sales@airowmarine.com before placing your order.
Frequently Asked Questions
What is an anodized aluminum boat hatch?
An anodized aluminum boat hatch is an opening hatch that uses an aluminum frame with an anodized surface finish. This product also features tinted acrylic glazing and an opening support mechanism.
Does this marine deck hatch come in different sizes?
Yes. The product is listed with 11 square and rectangular size options. Check the size selector and technical dimension chart to confirm the measurements of the variant you need.
Is the tinted acrylic boat hatch suitable as a replacement?
It may be suitable if the selected variant matches your existing opening, outer frame dimensions, mounting depth and installation requirements. Always compare measurements before ordering.
Is this boat hatch completely waterproof?
No universal waterproof claim should be assumed. Installed water resistance depends on the hatch design, correct fitment, sealant, mounting surface, fasteners and maintenance. Check the product documentation for any confirmed rating.
Can I install this opening boat hatch myself?
Installation depends on the vessel structure, opening dimensions and mounting requirements. Professional installation is recommended if you are unsure how to prepare the opening, seal the frame or secure the hatch.
How do I choose the correct hatch size?
Measure the existing cut-out, outer frame and available mounting depth, then compare those measurements with the technical drawing for the selected variant. Contact sales@airowmarine.com if you need help checking fitment.
How should I maintain the aluminum frame and acrylic glazing?
Clean them with products suitable for anodized aluminum and acrylic. Rinse away salt residue, avoid abrasive cleaners and inspect the seal and opening mechanism regularly.
Compatibility Notice
Boat and marine equipment terminology is used to describe the intended application of this product. AirowMarine is an independent seller and is not affiliated with or endorsed by any boat manufacturer unless explicitly stated.
