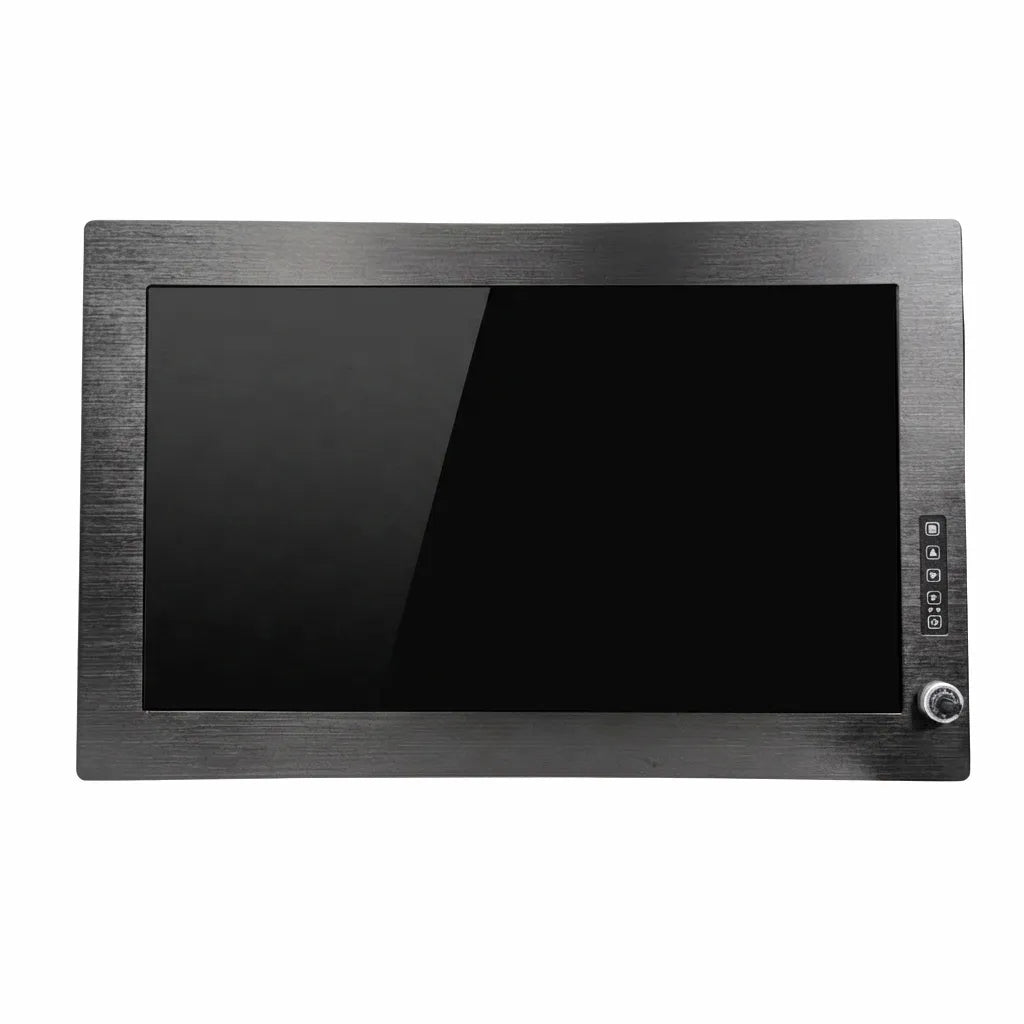

Marine-Grade 27-Inch Capacitive Touchscreen Monitor
Designed for the harshest marine environments, this 27-inch industrial display combines advanced technology with rugged durability. Featuring an oxidized brushed aluminum alloy panel and a high-strength sheet metal casing, this monitor is built for supreme resilience, offering optional IP65 dust and waterproof protection.
Display & Touch Excellence:
- Size & Resolution: A spacious 27-inch 16:9 industrial display with a crisp 1920x1080 Full HD resolution.
- Brightness: Standard 300cd/㎡ brightness, with an optional high-brightness version up to 1000cd/㎡ for clear visibility in direct sunlight.
- Contrast & Viewing Angle: A 1400:1 (Typ.) contrast ratio and wide 89/89/89/89 (Typ.) viewing angles ensure excellent image quality from any perspective.
- Capacitive Touch: The highly responsive capacitive touchscreen is protected by 3mm explosion-proof tempered glass, offering a lifespan of over 10 million clicks and a swift 25ms response time.
Connectivity & Versatility:

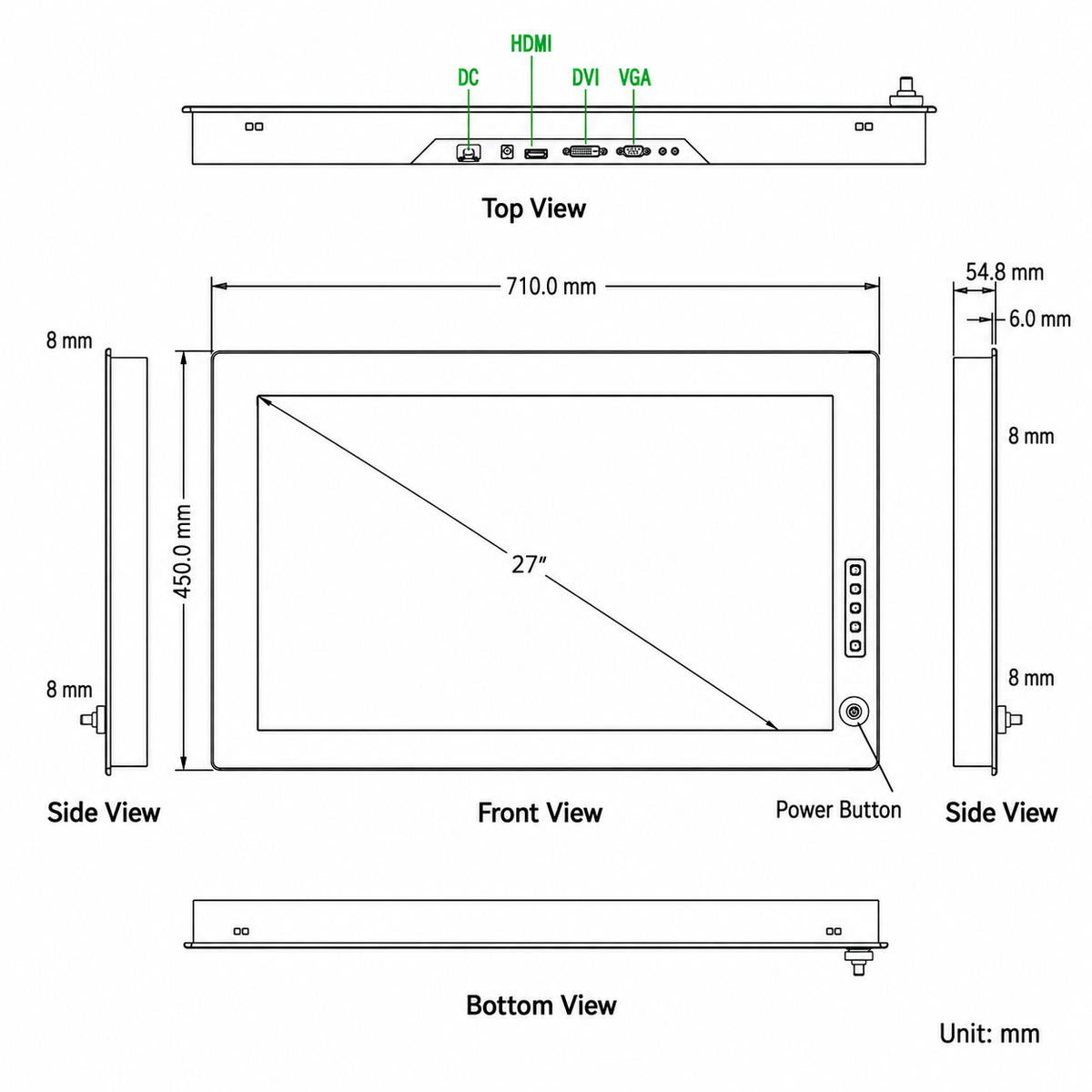

- Interface: Equipped with VGA, HDMI, DVI display inputs, and a USB touch interface for comprehensive connectivity.
- Power: Supports DC12V 5A power input or optional AC100-240V, 50-60Hz.

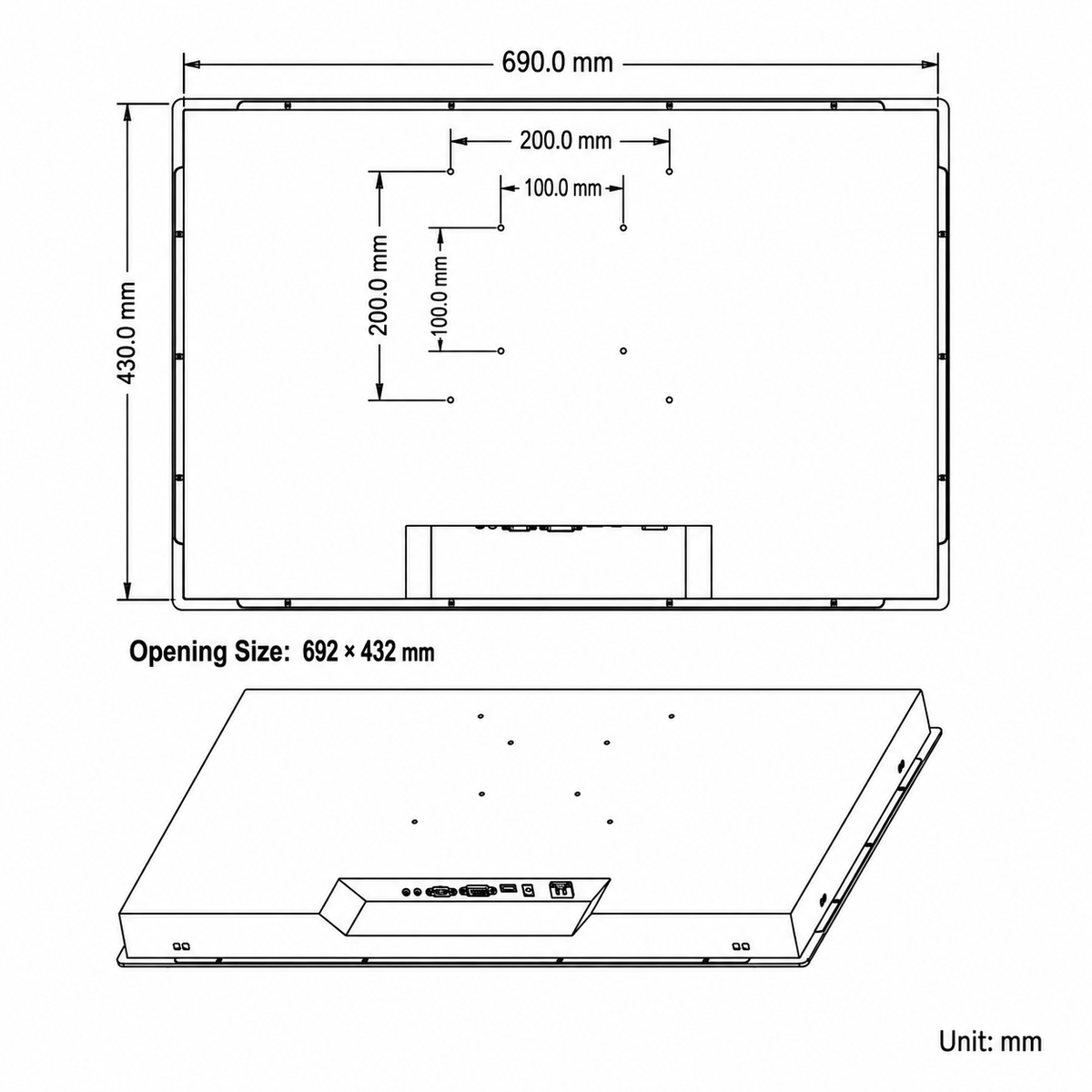

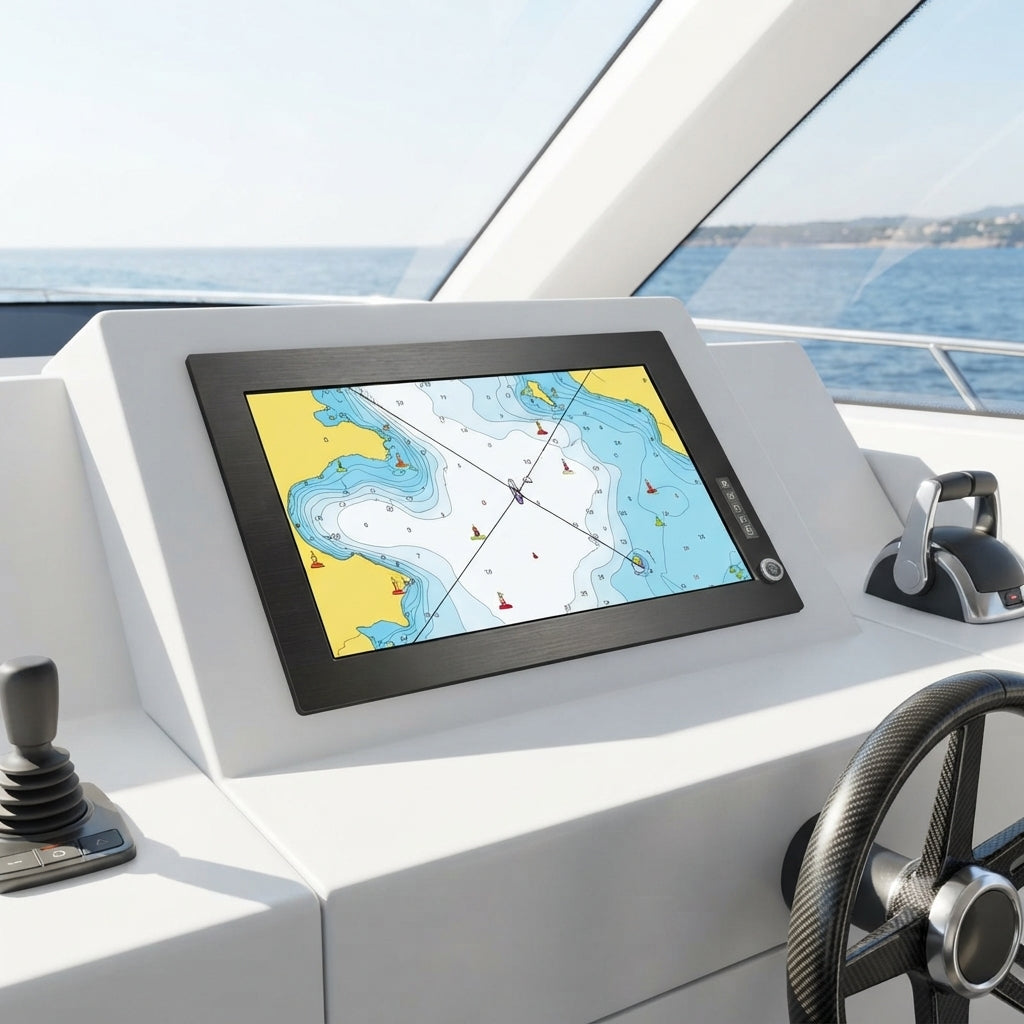

- Installation: Flexible mounting options include embedded, wall-mounted (VESA 200*200mm), stand-alone, and desktop.
Environmental Robustness:
- Operating Temperature: Operates reliably from 0℃ to 60℃, with an optional wide-temperature range of -20℃ to 70℃.
- Humidity: Functions in 10~90% relative humidity without condensation.
The sleek, ultra-thin design and intuitive OSD film buttons on the back casing allow for optimal display adjustment, making this monitor an essential upgrade for any marine vessel.
Frequently Asked Questions
- Is this monitor truly resistant to harsh marine environments?
- Absolutely. The oxidized brushed aluminum alloy panel and high-strength sheet metal casing provide robust protection. With an optional IP65 dust and waterproof rating and a wide operating temperature range of 0℃ to 60℃ (or -20℃ to 70℃ wide-temp option), it's built to withstand saltwater, dust, and extreme conditions.
- How clear is the display in bright sunlight, and is the touchscreen reliable?
- The 27-inch industrial display features 1920x1080 Full HD resolution, 1400:1 contrast, and wide 89/89/89/89 viewing angles. With a standard brightness of 300cd/㎡ and an optional 1000cd/㎡ high-brightness screen, visibility in direct sunlight is excellent. The capacitive touchscreen uses 3mm explosion-proof tempered glass, offering over 10 million clicks lifespan and a rapid 25ms response.
- What installation options are available, and is it compatible with existing marine systems?
- This monitor offers versatile installation, including embedded, wall-mounted (VESA 200*200mm), stand-alone, and desktop. For connectivity, it features VGA, HDMI, and DVI display inputs, along with a USB touch interface, ensuring broad compatibility with various marine navigation and computer systems.
