Navigate the seas with unparalleled precision using the new SY-298B Marine Autopilot. This state-of-the-art color model delivers professional-grade features in a compact, economical package, engineered for robust performance on small to mid-size vessels. Its CCS Certificated Performance ensures reliability, while the advanced course stability keeps your vessel on track.

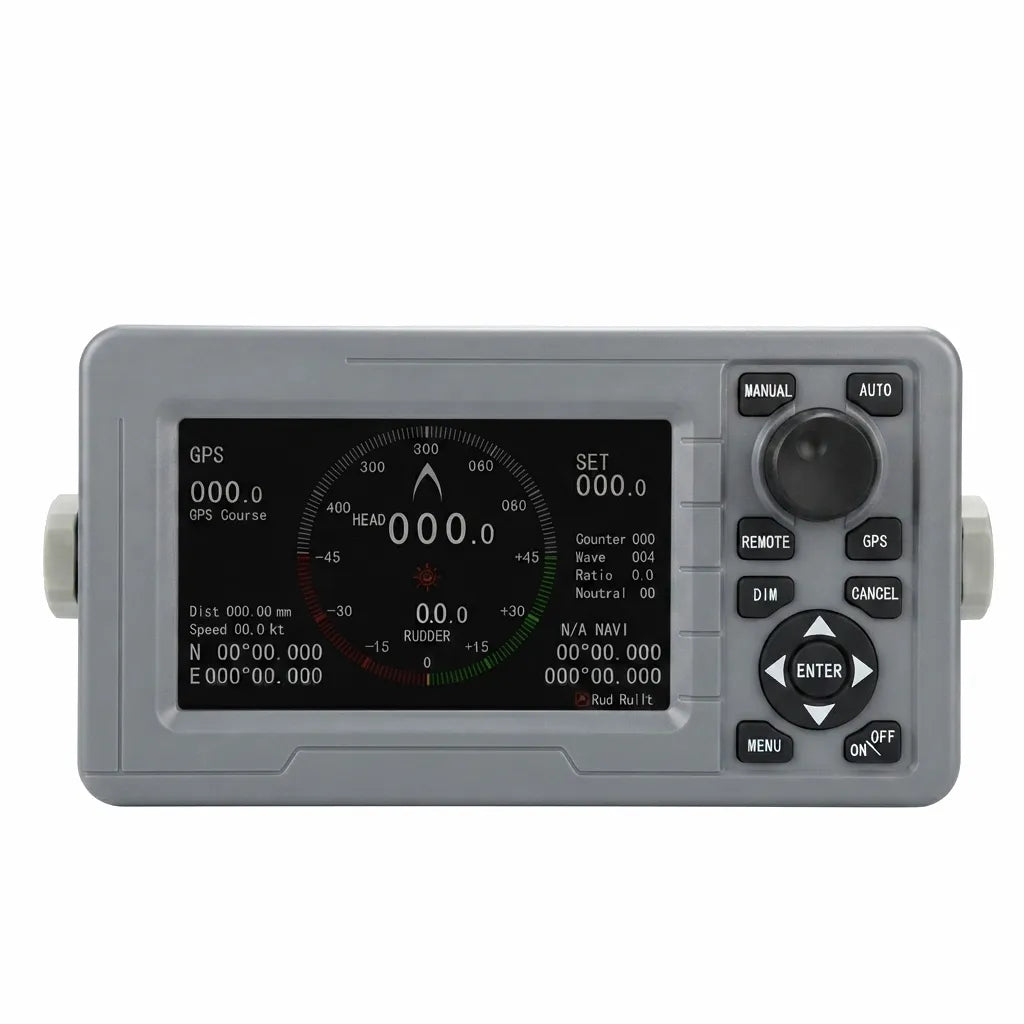

Featuring a high-contrast color LCD display and intuitive tactical response controls, operation is simple and direct. The weather-resistant architecture guarantees durability in harsh marine environments. The system can function as a standalone unit or seamlessly integrate with other NMEA 0183 compatible equipment, offering flexible waypoint navigation with an internal GPS compass sensor.
Key Modes Include:
- Manual Mode: Displays current magnetic heading; vessel under manual steering.
- Remote Mode: Maintains vessel on desired rudder angle, adjustable from the unit.
- Auto Mode: Holds vessel on any desired magnetic course.
- GPS Mode: Steers vessel to precise latitude/longitude, accommodating multiple course changes when connected to a GPS plotting system.
Standard Inclusions: SY-2028 master control unit, rudder feedback unit, electronic compass sensor with integrated GPS, remote control pad, remote steering controller, comprehensive mounting hardware, and operation manual.
Technical Specifications: Voltage: 24 volts DC (13.8V-36V). Average Current: 0.5 amps. Display: Color LCD. Course Detection: Better than 1 degree. Rudder Ratio: 0.4 to 5.0. Rudder Limits: Adjustable. Off Course Alarm: 45 degrees. NAV. Signal: NMEA 0183. Sensitivity: 0 to 15 degrees.
Frequently Asked Questions
- Is the SY-298B Autopilot difficult to install for a typical boater?
- No, the SY-298B is designed for straightforward installation. Its compact package and comprehensive standard inclusions, along with a detailed operation manual, make it manageable for boaters with basic technical skills. The product description explicitly states 'Simple to install and operate.'
- Can this autopilot integrate with my existing marine electronics, or is it a standalone system?
- The SY-298B is highly versatile. It can operate as a standalone system utilizing its internal GPS compass sensor for waypoint navigation, or it can seamlessly integrate with other NMEA 0183 compatible equipment, including GPS plotting systems, as detailed in the technical specifications ('NAV. SIGNAL: NMEA 0183').
- How durable and reliable is this autopilot in harsh marine conditions?
- The SY-298B is built for the marine environment. The infographic highlights its 'Rugged Industrial Build' and 'Weather-Resistant Architecture'. Furthermore, it boasts 'CCS Certificated Performance', indicating it meets stringent marine industry standards for reliability and durability against environmental stressors like salt spray and UV exposure. The casing is a marine-grade ABS/PC composite, sealed for ingress protection.
